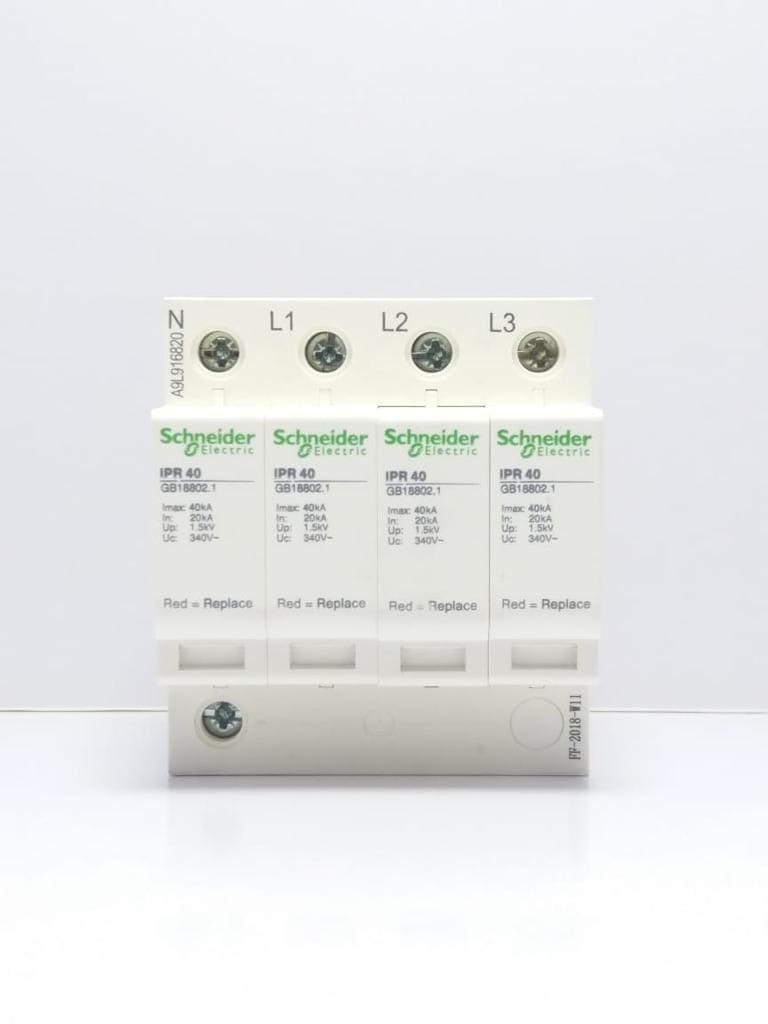

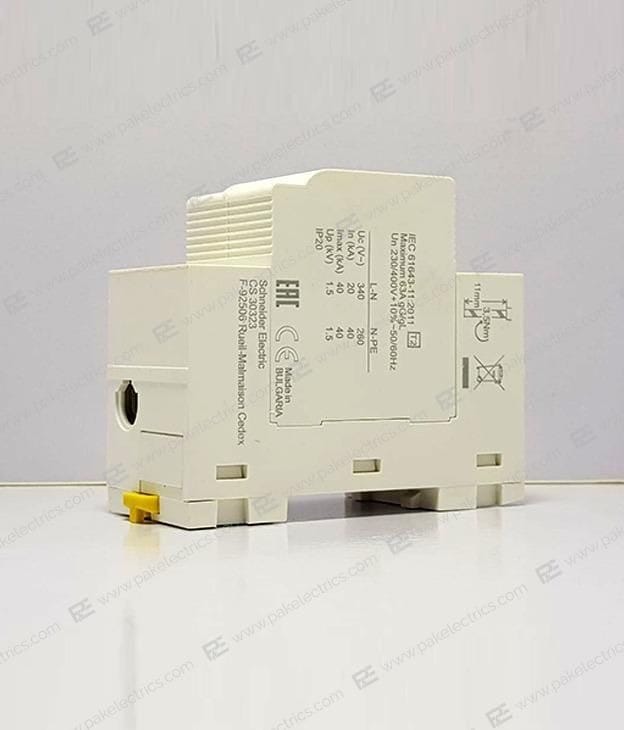

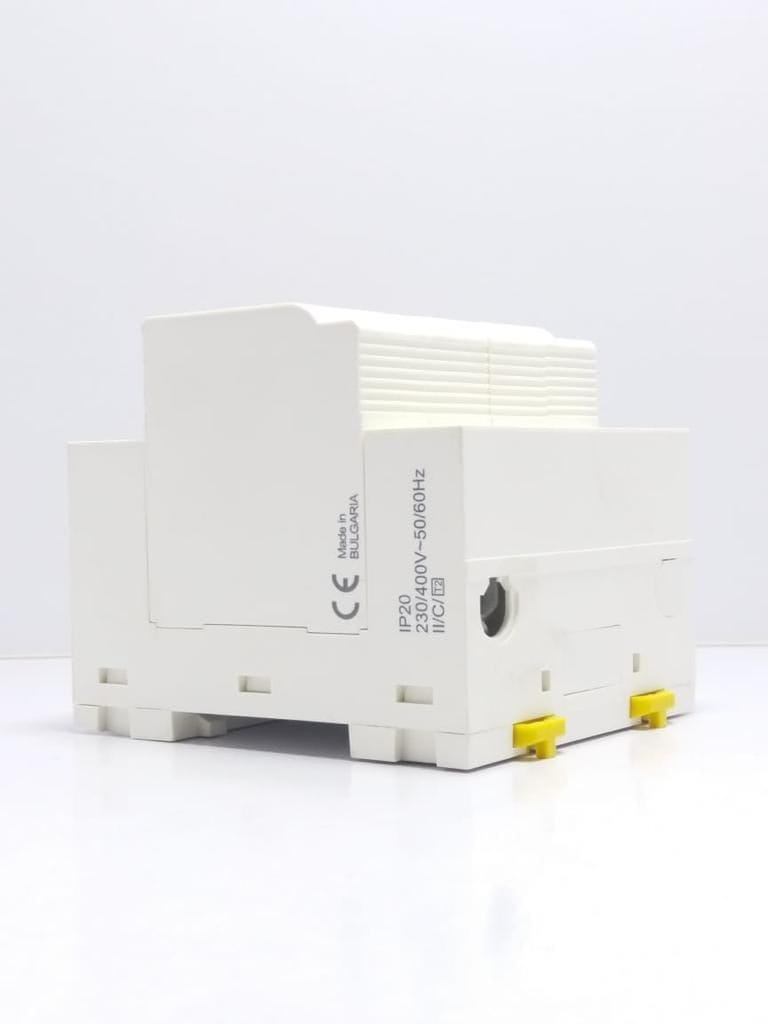

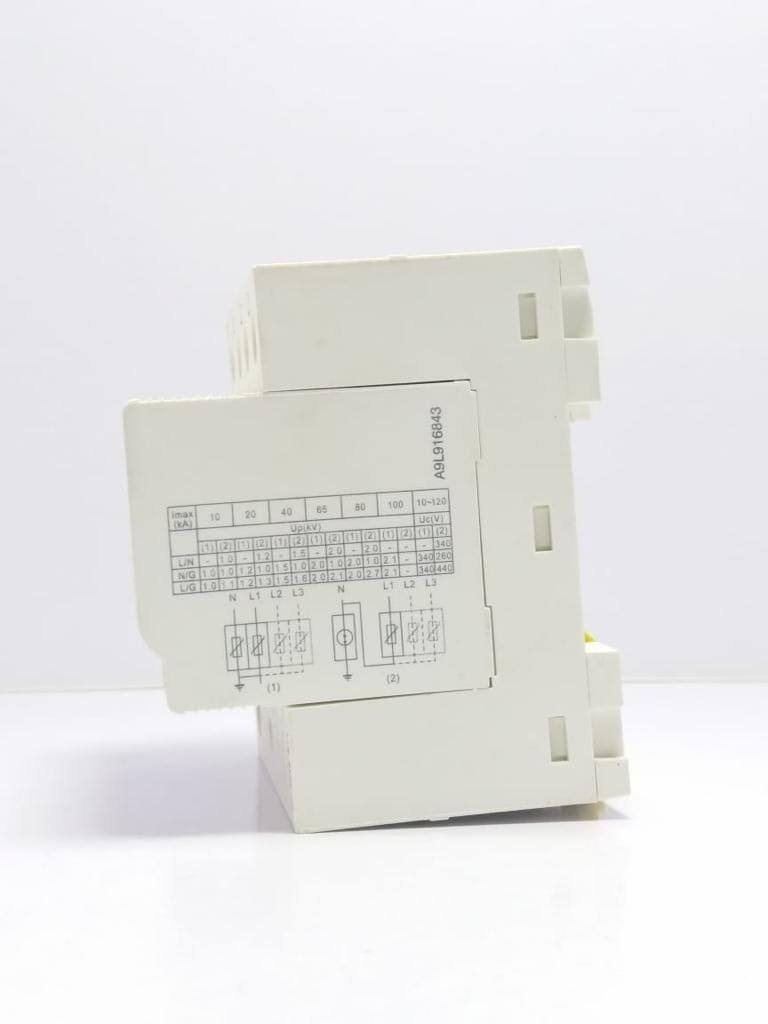

Schneider 4 poll SPD (Surge Protection Device) 40KA

The Schneider SPD (Surge Protection Device) 40KA is designed to help protect compatible electrical equipment from transient overvoltage events. Surge events can occur because of lightning activity, switching operations and disturbances on electrical networks, potentially exposing sensitive equipment to damaging voltage spikes. A correctly selected surge protection device provides an additional layer of protection by diverting surge energy through the appropriate protective path and earthing system.

A 40kA SPD is commonly considered for electrical distribution boards, control panels and other installations where surge protection is required. Depending on the exact model, an Schneider SPD 40KA may be designed for AC or DC systems, with different pole configurations, voltage ratings and installation requirements. This makes checking the exact product specification essential before ordering.

For solar installations, the distinction between AC and DC surge protection is particularly important. DC SPDs are designed for the DC side of a photovoltaic system, while AC SPDs are used on suitable AC distribution or inverter-output circuits. These products are not interchangeable simply because both may carry a 40kA rating. HN Electric’s current Schneider SPD range includes separate AC and DC 40kA products, reflecting this distinction.

The SPD 40KA can be a practical component in a properly designed protection system for electrical panels, distribution boards and compatible solar installations. However, the 40kA figure alone should not be used to determine whether a particular SPD is suitable. The installer should also confirm the system voltage, AC or DC application, number of poles, protection type, maximum continuous operating voltage, discharge characteristics and installation arrangement.

HN Electric offers surge protection products for electrical and solar applications in Pakistan. The store currently lists both MORA AC and DC 40kA SPDs, including the MORA AES-2040 4-pole AC model and a 2-pole 1000V DC model.

Before purchasing, compare the product’s technical specifications with the electrical system where it will be installed. The correct SPD should be coordinated with the distribution board, upstream protective devices and earthing arrangement. An SPD is not a replacement for an MCB, MCCB, RCCB/RCD or properly designed earthing system.

Installation and electrical connections should be carried out by a qualified electrician with the supply isolated and verified safe. If you are unsure whether you need an AC or DC SPD, or which voltage and pole configuration is appropriate, confirm the system requirements before ordering.

FAQS

1. What is a 40KA Surge Protection Device used for?
A 40kA SPD is used to help manage transient overvoltage surges in compatible electrical systems. The exact application depends on whether the device is designed for AC or DC systems and its other ratings.

2. Is a 40KA SPD suitable for a solar system?
It can be, but you must use an SPD specifically rated for the correct side of the solar system. DC SPDs are used for suitable PV/DC circuits, while AC SPDs are used on appropriate AC circuits.

3. Does 40KA mean the SPD works with every voltage?
No. 40kA describes a surge-current rating; it does not determine the device’s operating voltage. Always check the manufacturer’s voltage and application specifications.

4. Can an SPD replace an MCB or RCCB?
No. An SPD, MCB/MCCB and RCCB/RCD perform different protection functions and may need to be coordinated within the electrical installation.
