Schneider SPD DC 1000V Surge Protection Device for Solar Systems

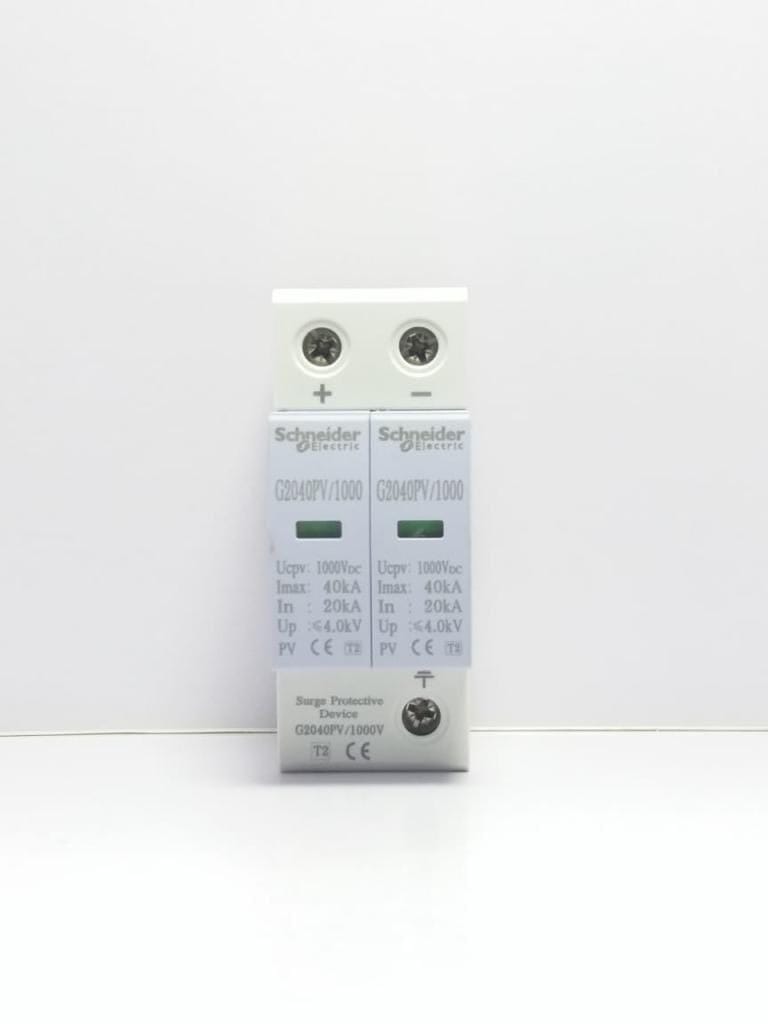

A schneider 1000V DC surge protection device is an important protection component for solar PV installations where the DC side can be exposed to lightning-related and switching transients. The DC  SPD 1000V is designed for suitable high-voltage DC applications and can be installed as part of a properly designed solar protection panel or DC distribution box.

Solar panels are normally installed outdoors, and the cables connecting the PV array to the inverter can run over considerable distances. During electrical storms or transient events, these conductors can be exposed to unwanted voltage surges. A correctly selected surge protection device helps divert transient surge energy through the protection and earthing system, reducing the exposure of connected equipment to damaging overvoltage.

This type of protection is particularly relevant for solar installations using higher-voltage PV strings. However, the 1000V rating should not be treated as a universal indication that the device is suitable for every solar system. The electrician or system designer should verify the actual PV string voltage, maximum continuous operating voltage, pole configuration, discharge-current rating, protection level and applicable installation requirements before installation.

The Schneider DC SPD 1000V is suitable for applications such as solar PV protection panels, DC distribution boxes, combiner boxes and compatible inverter-side DC protection arrangements. Its installation should be coordinated with the rest of the system, including DC breakers or isolators and a properly designed earthing arrangement.

For customers buying solar protection equipment in Pakistan, selecting the correct DC rating is especially important. A DC SPD should not be substituted with an AC SPD simply because both products are called surge protection devices. AC and DC protection devices are designed for different electrical applications, so always match the device to the circuit being protected.

HN Electric supplies solar and electrical protection equipment across Pakistan, including DC breakers, SPDs, isolators and solar distribution equipment. If you are unsure whether a 1000V DC SPD matches your inverter or PV string configuration, share the inverter model and system details before ordering so the correct specification can be confirmed.

Important: Installation should be carried out by a qualified electrician according to the manufacturer’s specifications and the requirements of the solar installation.

FAQs

Q1. What is a 1000V DC SPD used for?
A 1000V DC SPD is used to help protect compatible solar PV and DC circuits against transient overvoltages caused by events such as lightning-related surges and switching transients.

Q2. Can I use a 1000V DC SPD with any solar system?
No. The SPD must match the PV system’s voltage, configuration and other electrical requirements. Confirm the actual string voltage and device specifications before installation.

Q3. Is a DC SPD the same as an AC SPD?
No. DC and AC SPDs are designed for different electrical systems. A DC SPD should be selected for the appropriate DC circuit rather than substituted with an AC SPD.

Q4. Where is a DC SPD installed in a solar system?
Depending on the system design, it can be installed in a suitable PV protection panel, DC distribution box or other appropriate point on the DC side. Installation should follow the manufacturer’s instructions and the system’s protection design.
