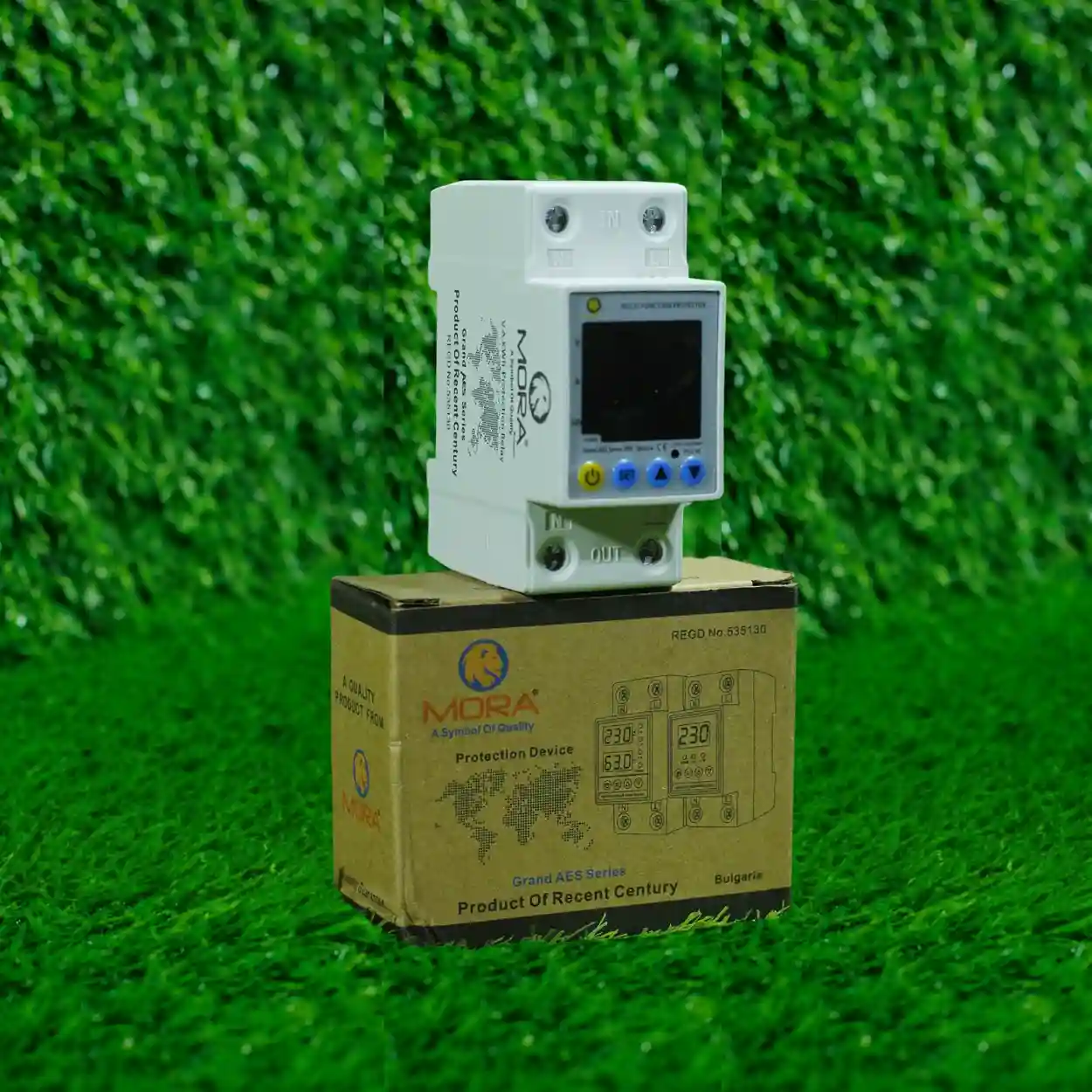

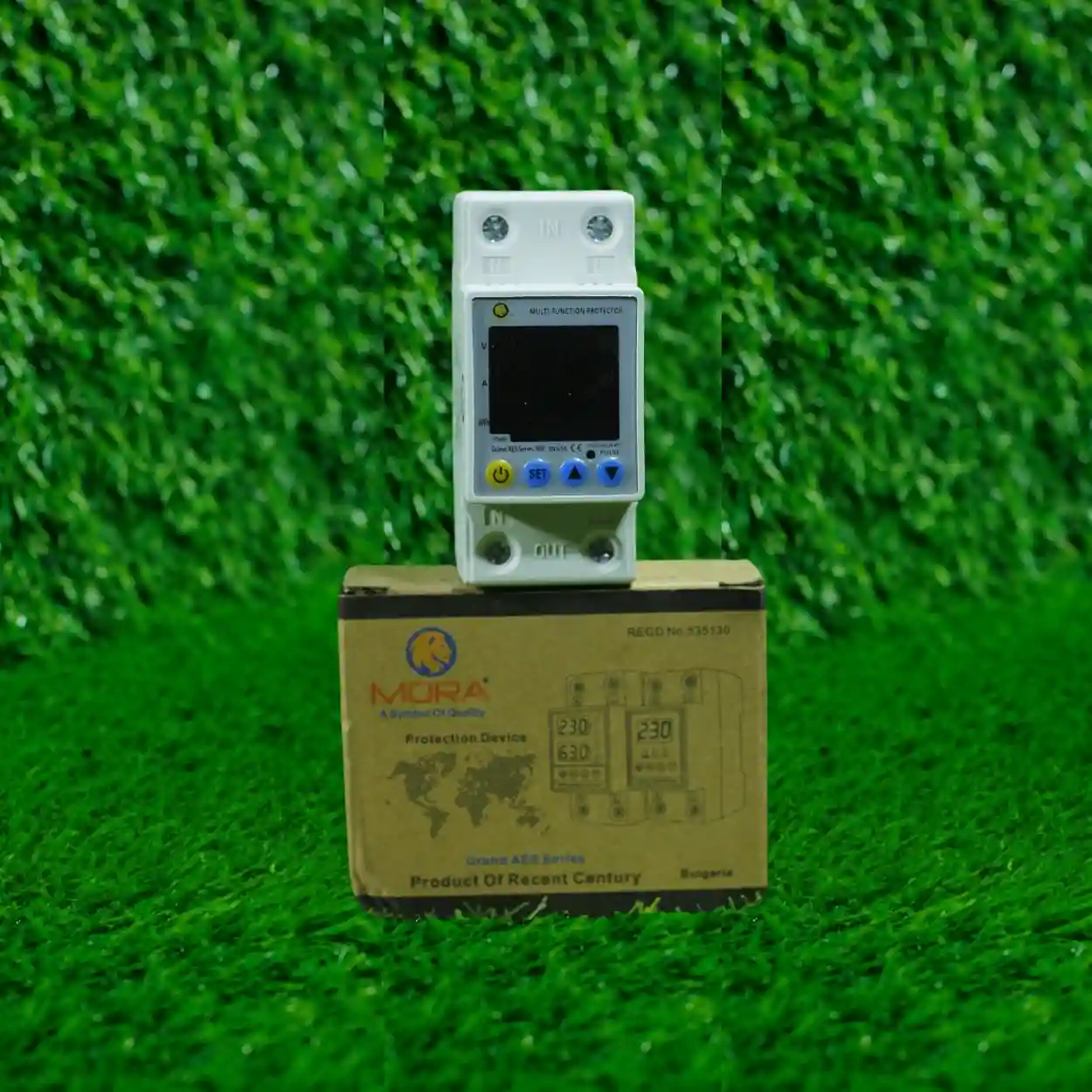

Mora 3 in 1 Voltage Protector with kWh Meter

The Mora 3 in 1 Voltage Protector with kWh Meter combines supply monitoring, automatic voltage protection and energy-use measurement in one DIN-rail device. It is designed for suitable single-phase AC circuits in homes, shops and offices where users want to monitor voltage, current and accumulated electricity consumption while reducing exposure to sustained high or low voltage.

When the measured voltage moves outside the configured limits, the unit can disconnect the connected circuit and restore it after normal conditions return and the selected delay has passed. Its digital display provides useful operating information, while the built-in kWh function helps users understand how much electrical energy the connected circuit has consumed. Energy monitoring supports informed decisions, but the device itself does not guarantee lower bills.

Mora 3 in 1 Voltage Protector with kWh Meter Features

• Over-voltage and under-voltage monitoring for suitable single-phase circuits
• Built-in kWh energy-use measurement
• Digital display for voltage, current and power information
• 63A listed current rating
• Adjustable operating limits and reconnection delay
• Automatic disconnection during sustained abnormal voltage conditions
• Automatic reconnection after acceptable supply conditions return
• Compact DIN-rail mounting for a compatible distribution box

Product Specifications

The 90V to 300V figure describes the listed operating or adjustable range, not a recommendation to run appliances at either extreme. Protection limits must be chosen according to the connected equipment, local supply conditions and the manufacturer’s instructions.

Where This 3-in-1 Protector Can Be Used

This Mora voltage protector may be considered for a main or selected sub-circuit serving compatible home appliances, office equipment, shop loads or a suitable solar and backup-power system. The 63A rating does not mean every installation should be loaded to 63A. Cable size, ambient temperature, enclosure conditions, upstream protection and continuous load must all be checked by an electrician.

The built-in energy meter is helpful for monitoring a circuit over time, comparing usage periods and identifying unusually high consumption. It is a local monitoring function and should not be described as a utility-approved billing meter unless the exact model documentation specifically confirms that certification.

Installation and Electrical Safety

This product is not a replacement for an MCB or MCCB, RCCB/RCD, dedicated surge protection device (SPD), proper earthing or correctly sized conductors. It responds to sustained voltage conditions, while an SPD is intended to help manage fast transient surges. Short-circuit and earth-leakage protection must be provided separately where required.

Installation should be completed by a qualified electrician with the supply isolated and verified dead. Confirm line and neutral connections, conductor size, terminal torque, upstream breaker rating and available DIN-rail space. For heavy inductive loads, motors or large air conditioners, the electrician should confirm whether the protector should control a suitably rated contactor instead of switching the load directly.

Buying Checklist

• Confirm that the circuit is single phase and compatible with the device
• Check expected maximum and continuous load current
• Verify cable size and upstream short-circuit protection
• Confirm panel space and neutral arrangement
• Choose voltage thresholds and reset delay for the connected equipment

Buy from HN Electric Pakistan

Compare this model with other voltage protectors, suitable circuit breakers and compatible distribution boxes. You can also explore more Mora products available from HN Electric.

Order the Mora 3-in-1 Protector

Choose the Mora 3 in 1 Voltage Protector with kWh Meter when you need digital voltage protection and circuit-level energy monitoring in one compact device. Have a qualified electrician confirm compatibility and settings before installation.
