MORA 6 in 1 Energy Meter 22mm | HN Electric

The MORA 6 in 1 Energy Meter 22mm is a compact multifunction digital meter designed for monitoring important electrical parameters from a single display. Instead of installing separate meters for voltage, current, power, energy and frequency, this unit brings multiple readings together in one practical device. It is suitable for electrical panels, control systems, workshops, homes, commercial installations and other applications where quick access to electrical measurements is useful.

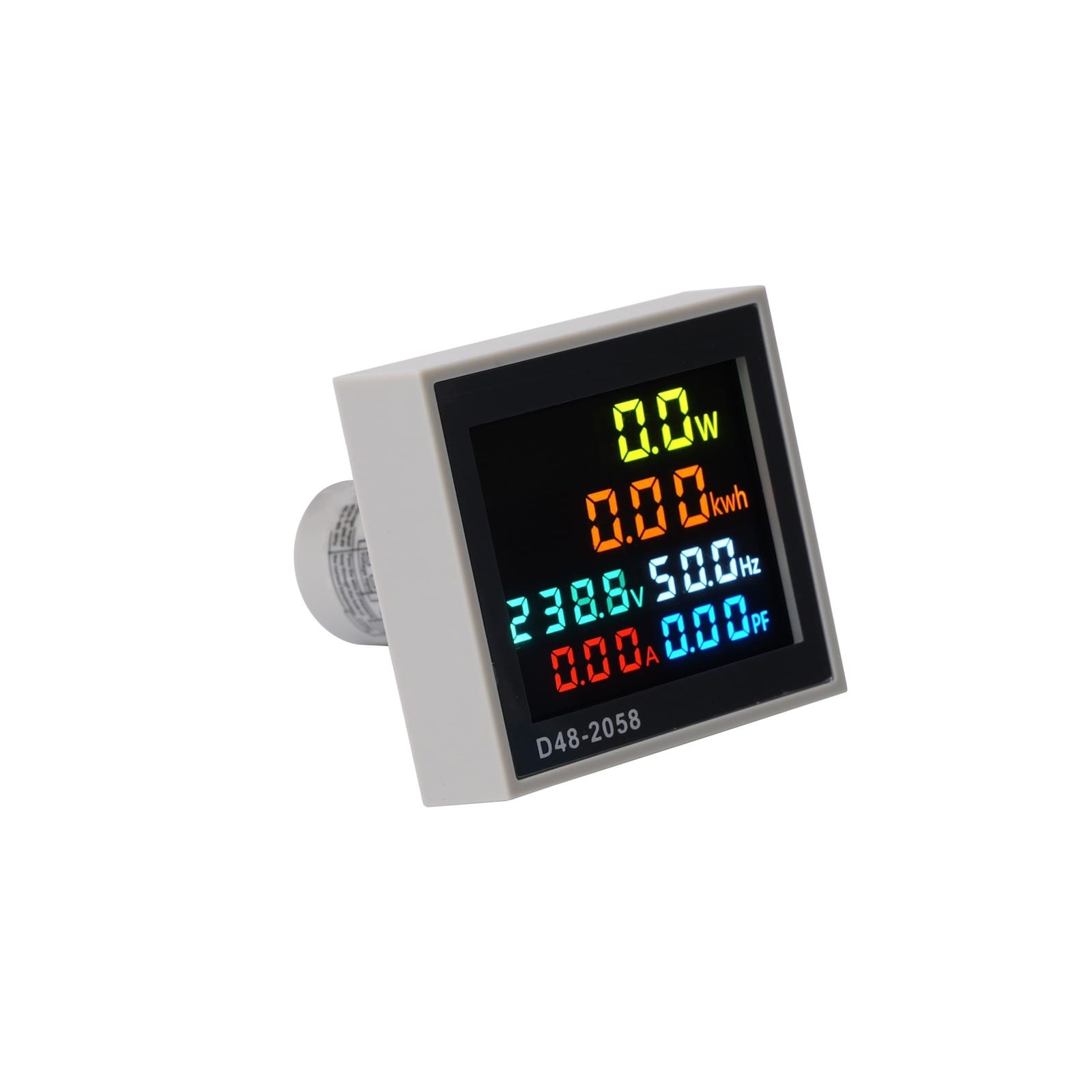

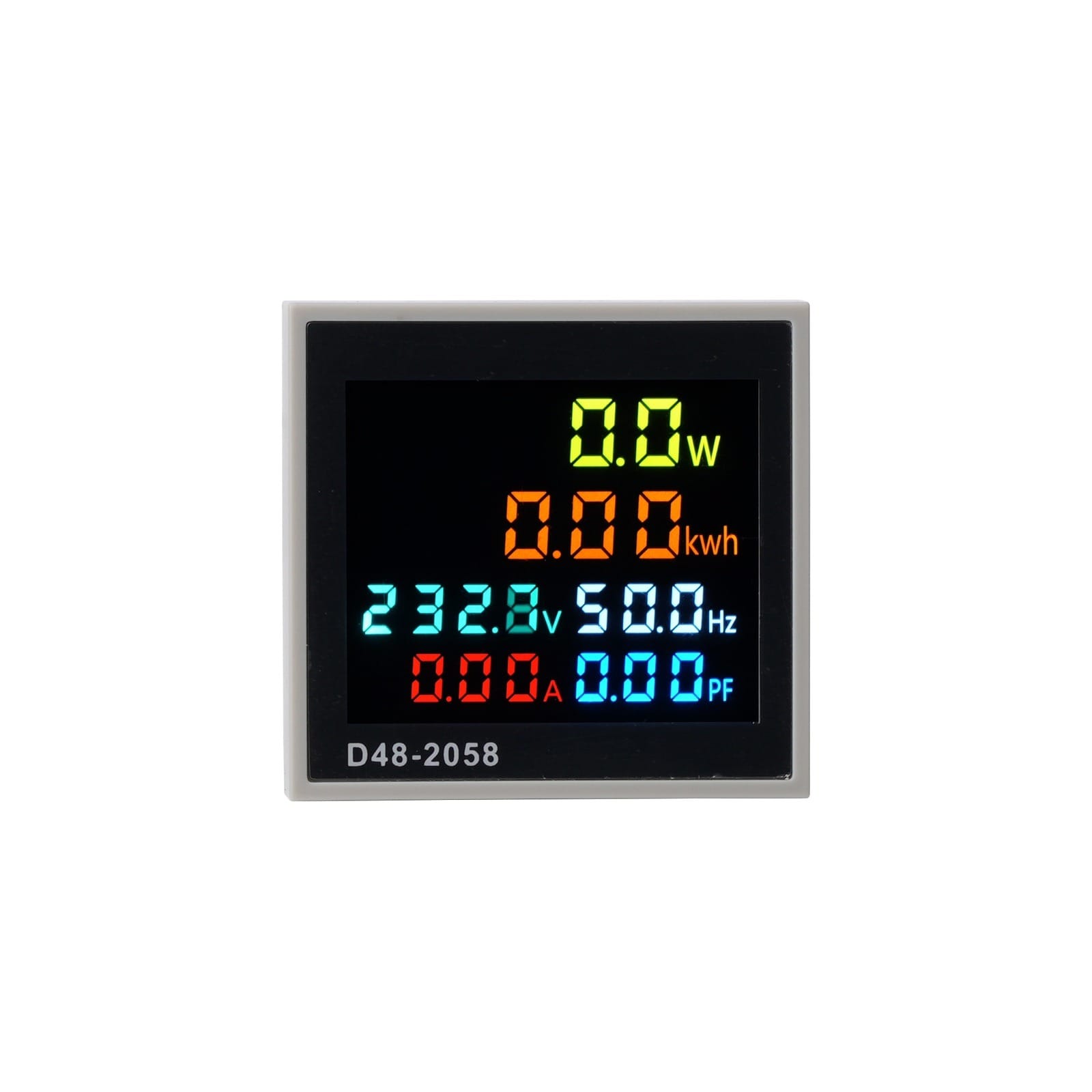

This multifunction meter can display AC voltage, AC current, active power, electrical energy in kWh, power factor and frequency. Having these readings available in one unit makes it easier to understand how an electrical load is operating and how much energy it is consuming.

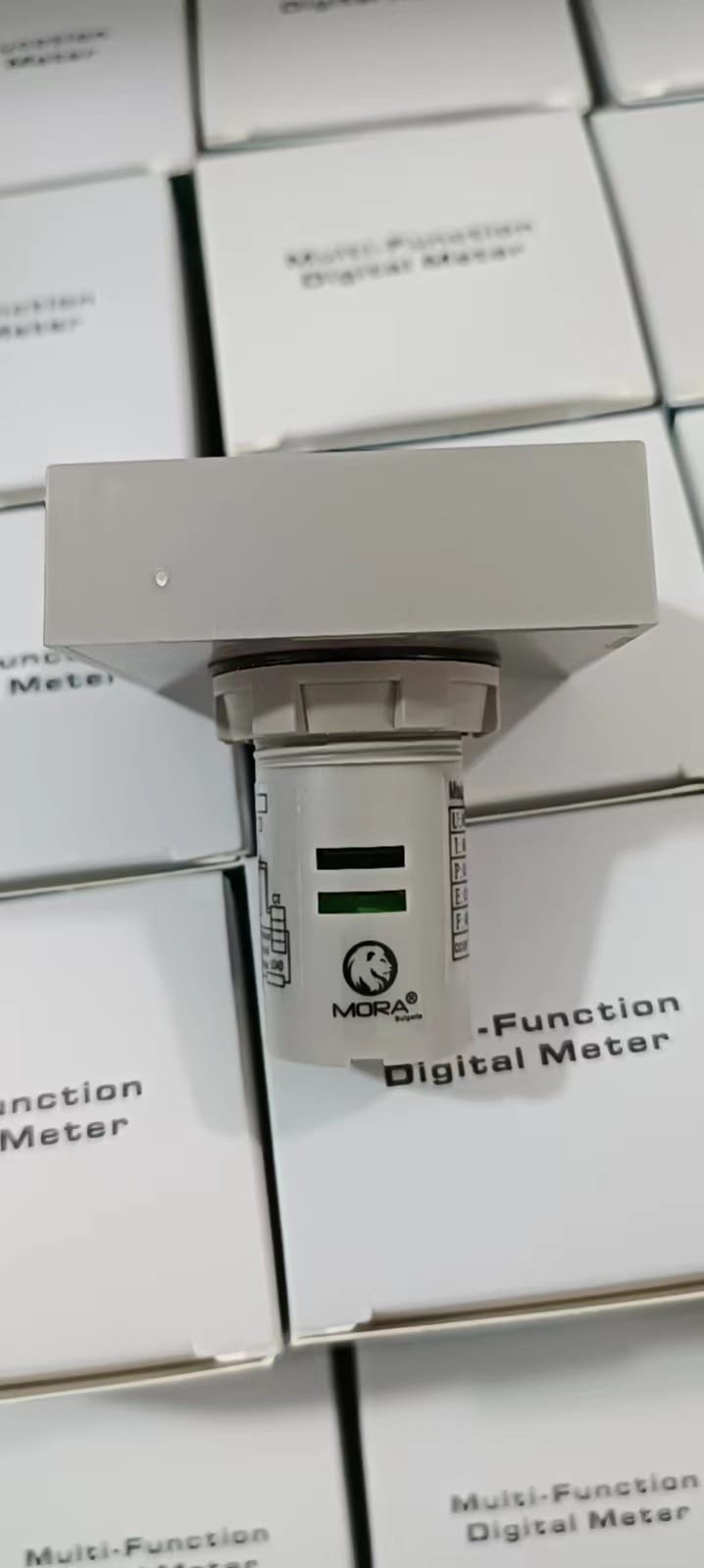

The 22mm mounting requirement makes the meter particularly useful for installations where a compact panel-mounted solution is preferred. Before installation, always confirm the panel cut-out and wiring arrangement against the actual product supplied.

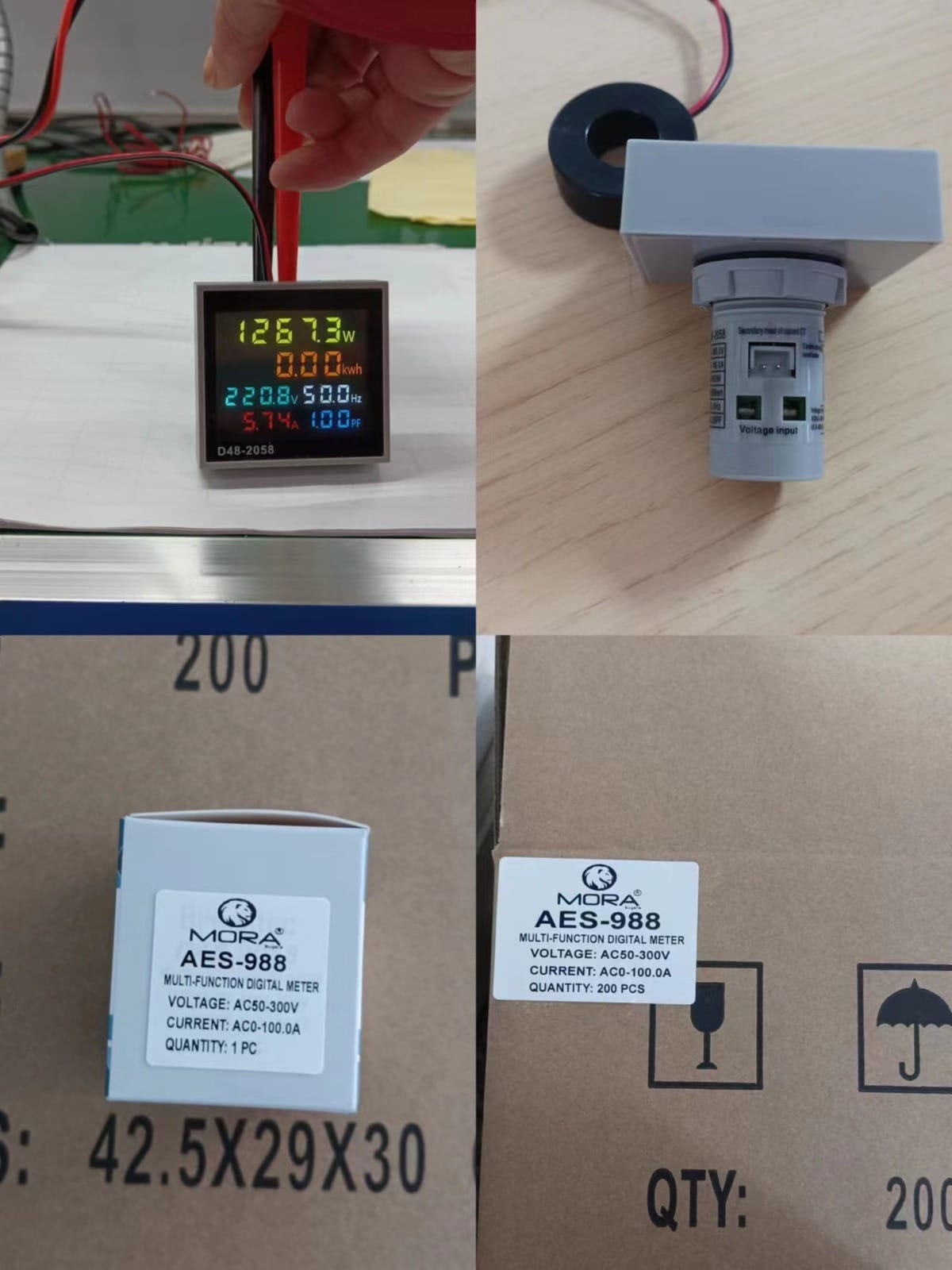

Depending on the specific version, the meter supports AC voltage measurement in the approximate 50–300V range and current measurement up to around 100A. Available specifications from Pakistani sellers also indicate frequency measurement around 45–65Hz, power factor measurement from 0.00–1.00PF and active power measurement up to approximately 45kW.

The MORA 6 in 1 Energy Meter 22mm is useful for electricians, technicians, solar installers, maintenance teams and users who want more information than a basic volt or amp meter can provide. The digital display makes readings easy to check during normal operation, while the compact design helps save panel space.

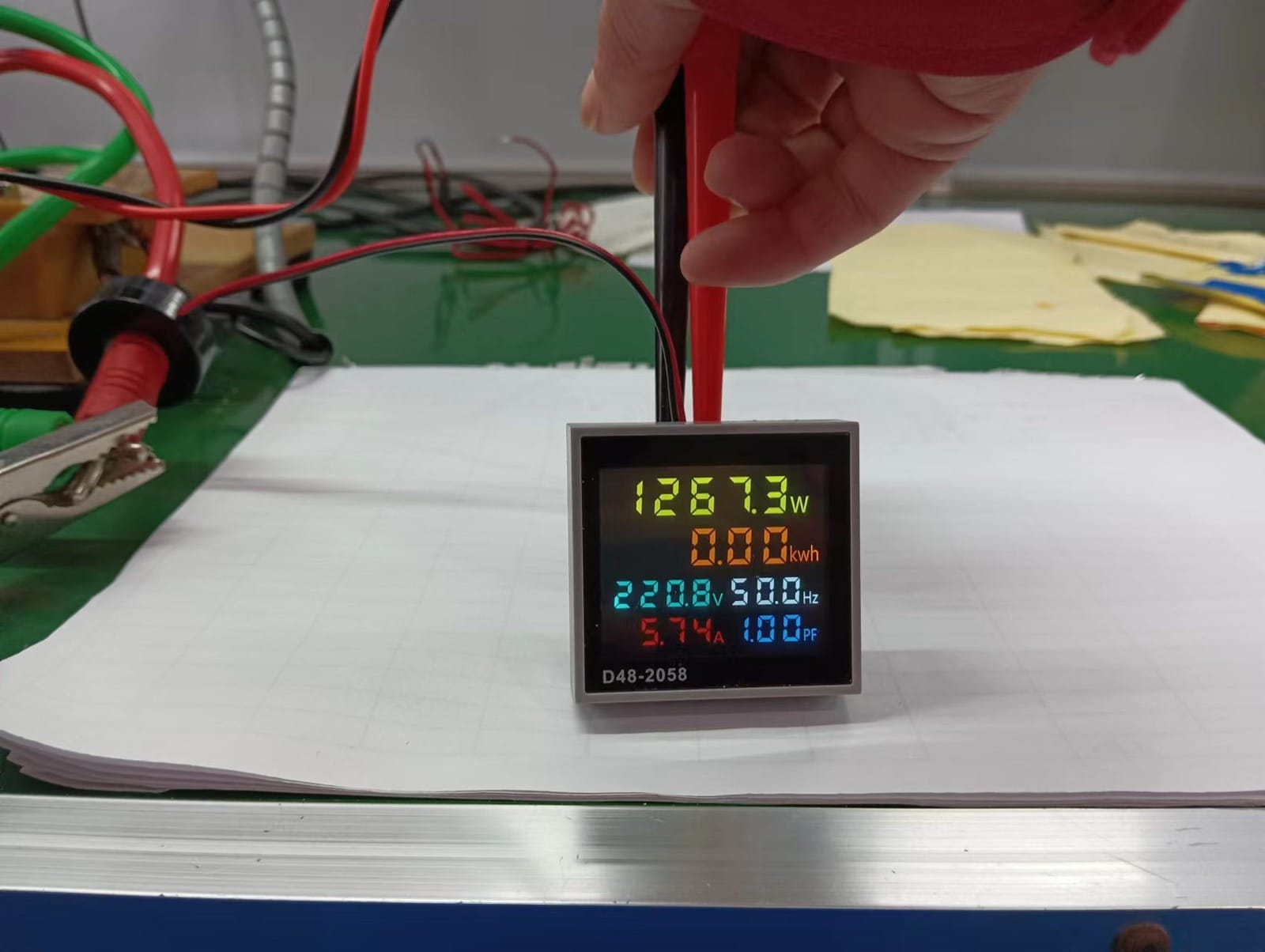

It can also be useful when troubleshooting electrical loads or monitoring changes in consumption. For example, users can check voltage and current alongside power and power factor to get a clearer picture of an operating load.

For customers in Pakistan looking for a MORA 6 in 1 Energy Meter 22mm, HN Electric provides an electrical-product focused buying option with local support. Always verify the required voltage, current capacity, installation method and wiring configuration before connecting the meter to an electrical system.

FAQs

1. What does the MORA 6 in 1 Energy Meter measure?
It can display AC voltage, current, active power, energy consumption in kWh, power factor and frequency.

2. What is the mounting hole size of the MORA 6 in 1 meter?
This version is designed for a 22mm mounting hole. Confirm the actual product specifications before installation.

3. Can this meter measure electricity consumption in kWh?
Yes. The meter includes an electrical energy/kWh reading, allowing users to monitor accumulated energy consumption.

4. Is the MORA 6 in 1 meter suitable for electrical panels?
Yes. Its compact panel-mount design makes it suitable for electrical monitoring applications, provided the voltage, current and wiring requirements match the installation.
