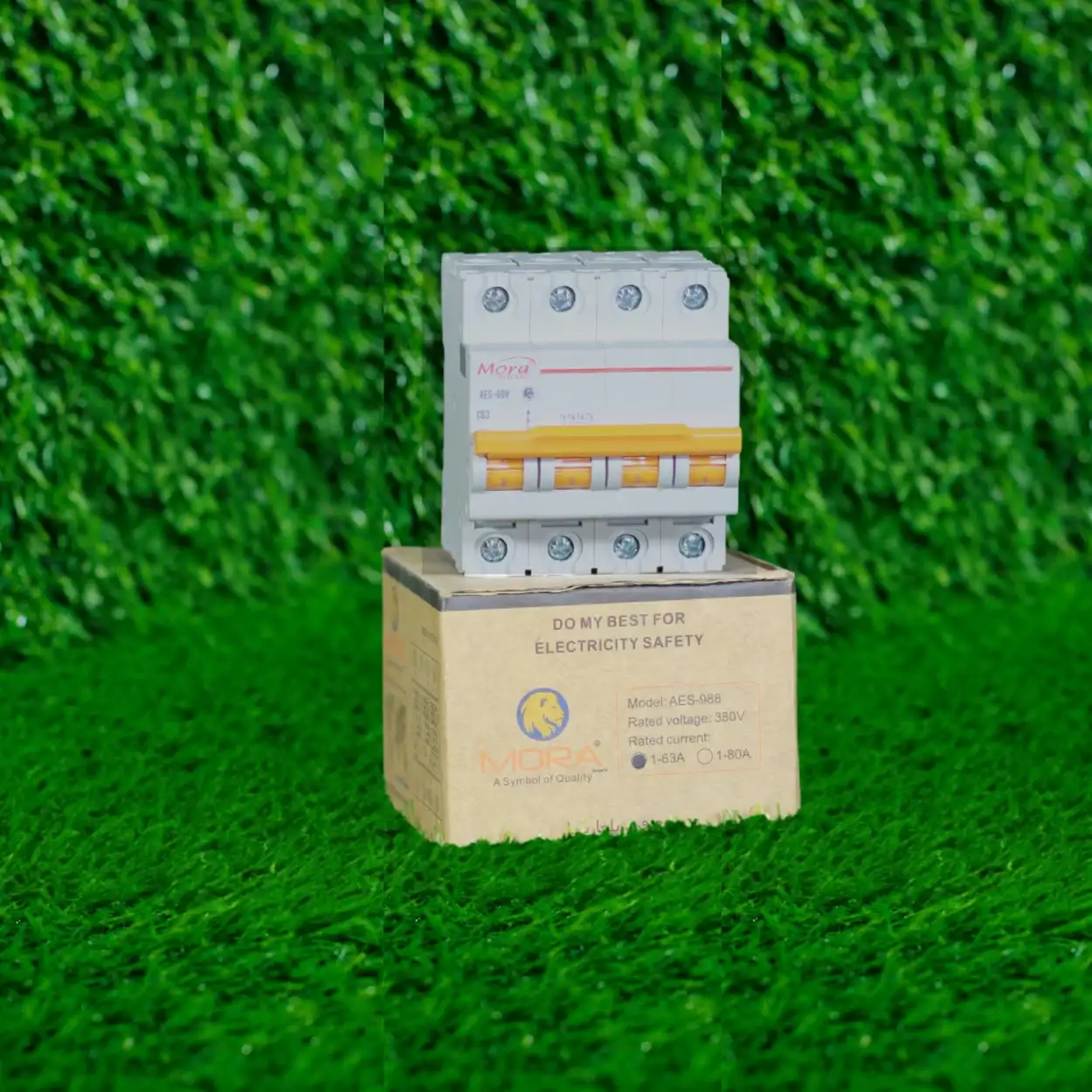

Mora 4P 63A AC Circuit Breaker

Mora 4P 63A AC Circuit Breaker is a four-pole miniature circuit breaker intended for compatible three-phase plus neutral AC distribution systems. It can be used as part of a properly designed main or sub-distribution board to disconnect all four conductors together and provide overload and short-circuit protection. The 63A rating makes it relevant for larger residential, commercial, workshop and selected solar-inverter AC-side installations, but final selection must always be based on the actual load, conductor size and fault level.

Mora 4P 63A AC Circuit Breaker Features

• Four-pole switching: operates the three phases and neutral together in a suitable three-phase, four-wire circuit.
• 63A rated current: suitable only where the circuit design, cable capacity and protective coordination support this rating.
• Overload and short-circuit protection: helps protect correctly sized conductors and connected distribution circuits.
• DIN-rail format: designed for installation in compatible distribution boards and electrical enclosures.
• Clear multi-pole isolation: useful for maintenance and organized protection of three-phase circuits.

Where Can This 4-Pole MCB Be Used?

This breaker may suit three-phase distribution boards in homes with three-phase service, shops, offices, workshops and light commercial premises. It can also be considered for the AC side of a compatible three-phase solar inverter system when the inverter manufacturer and electrical design specify the correct four-pole protection arrangement. Browse our complete circuit breaker collection for other current ratings and configurations.

A four-pole device is commonly selected where three phase conductors and a neutral need coordinated switching. It should not be chosen only because a system is “three phase.” The earthing arrangement, neutral requirements, load type and applicable wiring rules must be checked by a qualified electrician.

How to Select the Correct 63A Breaker

Before ordering, confirm the product label and your project requirements. Check the rated operating voltage, breaking capacity, trip curve, applicable standard and terminal specifications shown on the actual unit. The prospective short-circuit current at the installation point must not exceed the breaker’s verified breaking capacity. Also confirm that 63A does not exceed the safe current-carrying capacity of the cable after considering installation method, ambient temperature, grouping and voltage drop.

Protective-device coordination matters. The upstream and downstream breakers should be selected so a local fault can be cleared safely without unnecessary loss of power to the complete installation. For a neat and protected installation, pair the breaker with a correctly sized enclosure from our distribution boxes range.

MCB, RCCB and Surge Protection Are Different

The Mora 4P 63A AC Circuit Breaker is intended for overcurrent protection; an MCB does not by itself provide earth-leakage protection. Where shock or leakage protection is required, a suitably rated RCCB or RCBO should be included according to the electrical design. Likewise, an MCB is not a substitute for a surge protection device. Where transient overvoltage protection is required, review our SPDs and surge protection devices.

Installation and Safety Guidance

Installation should be completed by a qualified electrician with the supply safely isolated and verified dead. The electrician should confirm line and load orientation, conductor preparation, terminal compatibility and the manufacturer’s tightening-torque requirements. Loose terminals can generate heat, while incorrect pole or neutral connections can create a serious hazard. Mount the device in a compatible DIN-rail enclosure with adequate space, ventilation and protection from moisture, dust and accidental contact.

After commissioning, the installation should be labelled and tested. Periodic inspection is recommended for signs of overheating, discoloration, unusual tripping, damaged insulation or loose connections. Never repeatedly reset a breaker that trips without first finding and correcting the cause. The breaker rating must not be increased simply to stop nuisance tripping.

Why Buy Mora Electrical Protection from HN Electric?

HN Electric supplies practical electrical protection products for Pakistani homes, businesses, workshops and solar projects. This listing gives buyers clear selection guidance instead of relying on the current rating alone. Explore more products from the Mora brand, or contact HN Electric before ordering if you need help comparing pole configuration, current rating or protection type.

Important: Product appearance and label details may vary by batch. Verify all printed specifications on the supplied unit before installation and ensure the complete system complies with local electrical requirements.
