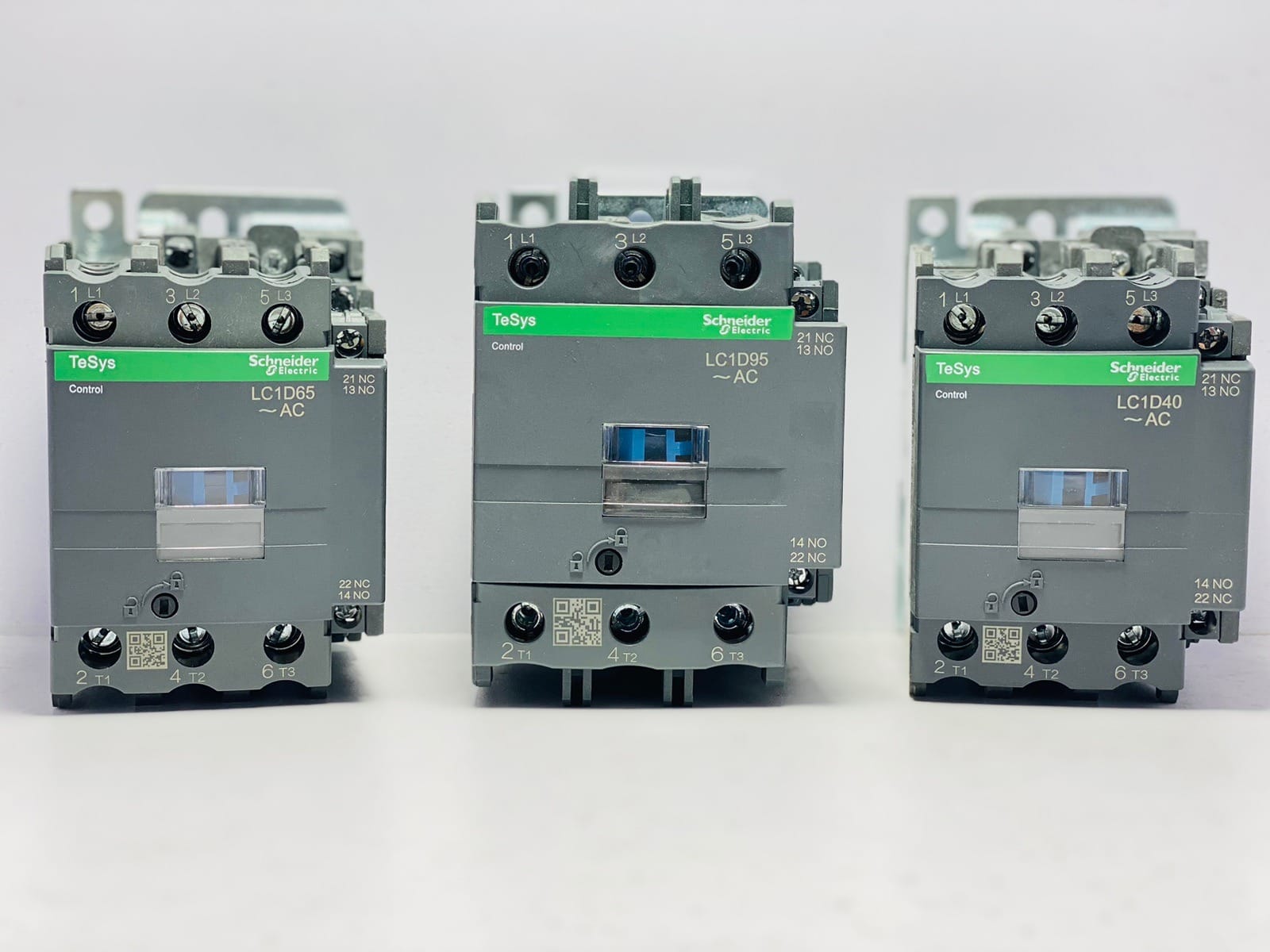

Schneider LC1D95 Magnetic Contactor 95A 220V

The Schneider LC1D95 Magnetic Contactor is a heavy-duty 3-phase contactor designed for motor control and industrial electrical applications where dependable switching and reliable performance are important. It belongs to Schneider Electric’s TeSys D range and is suitable for use in motor starters, industrial control panels, pumps, compressors, HVAC systems, machinery and other electrical installations.

The Schneider LC1D95 is rated at 95A under AC-3 operating conditions, making it suitable for controlling appropriately sized three-phase motors. This particular M7 version uses a 220V AC 50/60Hz control coil, which is commonly required in electrical control panels and motor-control systems. Schneider’s official documentation specifies a 3-pole contactor with three normally open main contacts, a 95A AC-3 rating and a 125A AC-1 rating at up to 440V.

For motor applications, the LC1D95 can handle motors up to 45kW at 380–400V and 415–440V AC-3 under the manufacturer’s specified conditions. The contactor also has 1 normally open and 1 normally closed auxiliary contact, allowing it to be incorporated into control, interlocking and signalling circuits.

When purchasing an LC1D95 in Pakistan, customers should verify the complete model reference and coil voltage before ordering. The LC1D family includes different coil-voltage versions, so the complete reference printed on the contactor is more important than simply matching the LC1D95 name.

The Schneider LC1D95 is a suitable choice for electricians, panel builders, industrial maintenance teams, contractors and businesses looking for a high-current contactor for three-phase motor-control applications. Its TeSys D construction is designed for regular industrial operation while allowing straightforward integration into control panels.

HN Electric can target this product toward customers searching for a Schneider LC1D95 contactor in Pakistan, including buyers looking for the LC1D95M7 95A 220V version.

Before installation, verify the motor’s rated current, supply voltage, control voltage, utilization category, overload protection and all associated electrical equipment. The contactor should be installed and commissioned by a qualified electrical professional in accordance with Schneider Electric documentation and applicable electrical safety requirements.

FAQs

Q1. What is the rating of the Schneider LC1D95 contactor?
The LC1D95M7 is rated 95A AC-3 and 125A AC-1 under the specified operating conditions.

Q2. What is the coil voltage of LC1D95M7?
The M7 version uses a 220V AC 50/60Hz coil.

Q3. Is LC1D95 suitable for three-phase motors?
Yes. It is a 3-pole/3NO TeSys D contactor designed for motor-control applications. Schneider specifies motor ratings including up to 45kW at 380–400V AC-3 under the stated conditions.

Q4. What is the difference between 95A and 125A on LC1D95?
The 95A figure is the AC-3 motor-control rating, while 125A is the AC-1 rating under the specified conditions. The two ratings should not be treated as interchangeable.
