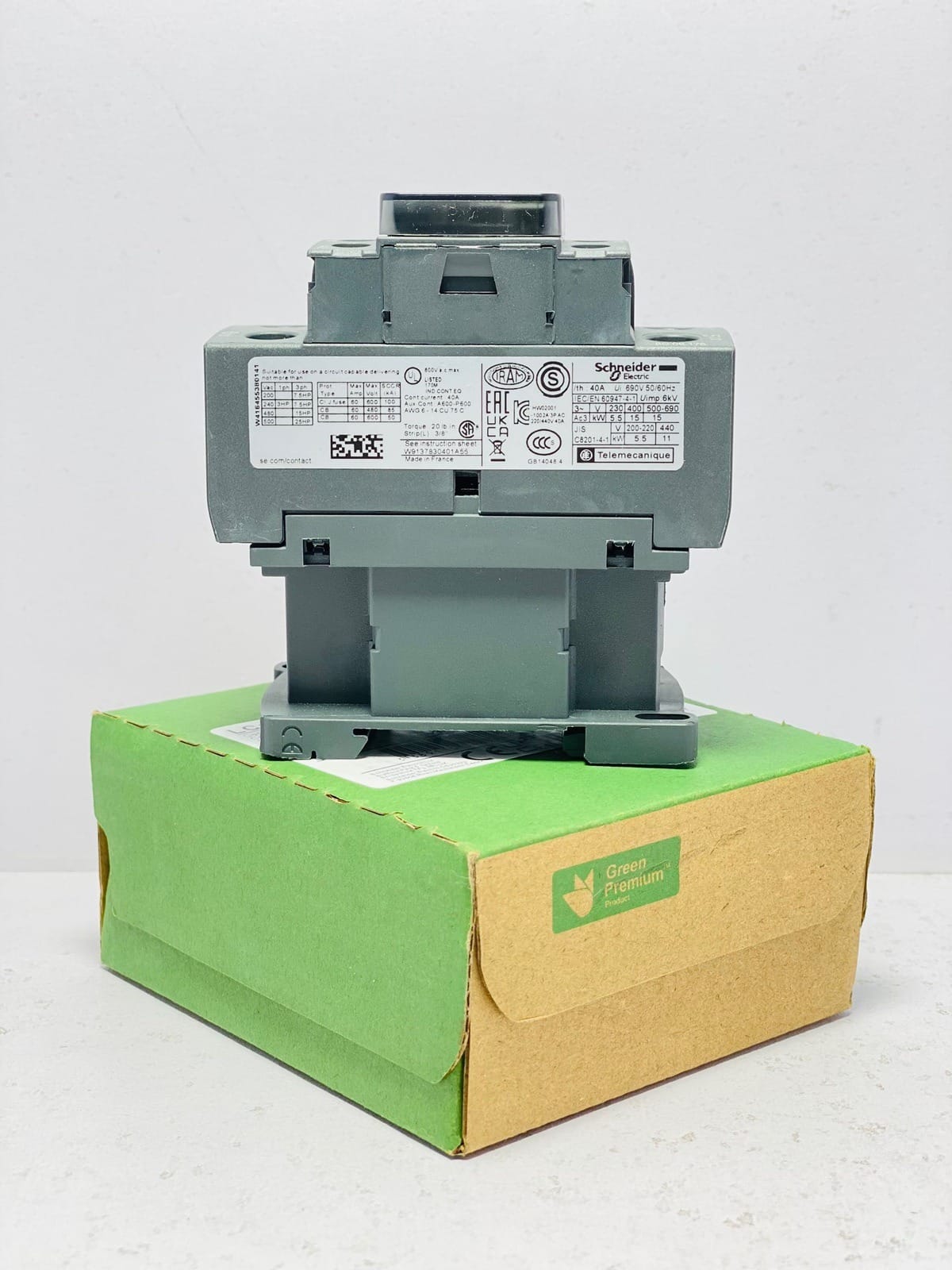

Schneider LC1D80 Magnetic Contactor 80A 220V

The Schneider LC1D80 Magnetic Contactor is a heavy-duty 3-phase contactor designed for motor control and industrial electrical applications where reliable switching and dependable operation are required. It belongs to Schneider Electric’s TeSys D range and is suitable for use in motor starters, control panels, pumps, compressors, HVAC equipment, machinery and other electrical installations.

The Schneider LC1D80 is rated at 80A under AC-3 operating conditions, making it suitable for controlling appropriately sized three-phase motors. This version uses a 220V AC 50/60Hz control coil, a commonly used control voltage for electrical panels and motor-control systems in Pakistan. Schneider identifies the LC1D80M7 as a 3-pole, 3 normally open contactor with an AC-3 rating of 80A at up to 440V. The product is designed for motor-control applications and is rated for motors up to 37kW at 400V under the specified conditions.

The contactor includes built-in auxiliary contacts for control and signalling circuits and uses screw connections for power and control wiring. Its compact TeSys D construction allows it to be integrated into industrial control panels and motor starter assemblies while maintaining easy access for installation and maintenance.

When purchasing an LC1D80 in Pakistan, it is important to verify the complete model number and coil voltage rather than relying only on the LC1D80 name. Schneider offers different LC1D80 variants with different coil voltages, so customers replacing an existing contactor should compare the exact reference printed on the original device.

HN Electric can use this product page to target customers searching for a Schneider LC1D80 contactor in Pakistan, including electricians, industrial maintenance teams, panel builders, contractors and businesses looking for a reliable 80A 220V contactor for motor-control applications.

Before installation, verify the motor’s rated current, supply voltage, control voltage, utilization category, overload protection and other associated equipment. The contactor should be installed and commissioned by a qualified electrical professional according to Schneider Electric documentation and applicable electrical safety requirements.

FAQs

Q1. What is the rating of the Schneider LC1D80 contactor?
The LC1D80M7 is rated 80A AC-3 for motor-control applications. Schneider specifies operation up to 440V for the AC-3 rating.

Q2. What is the coil voltage of LC1D80M7?
This model uses a 220V AC 50/60Hz coil.

Q3. Is Schneider LC1D80 suitable for 3-phase motors?
Yes. It is a 3-pole/3NO TeSys D contactor designed for motor-control applications.

Q4. What is the difference between LC1D80M7 and other LC1D80 models?
The LC1D80 family includes variants with different control-coil voltages. The M7 version is the 220V AC 50/60Hz coil variant, so always check the complete model number before ordering.
