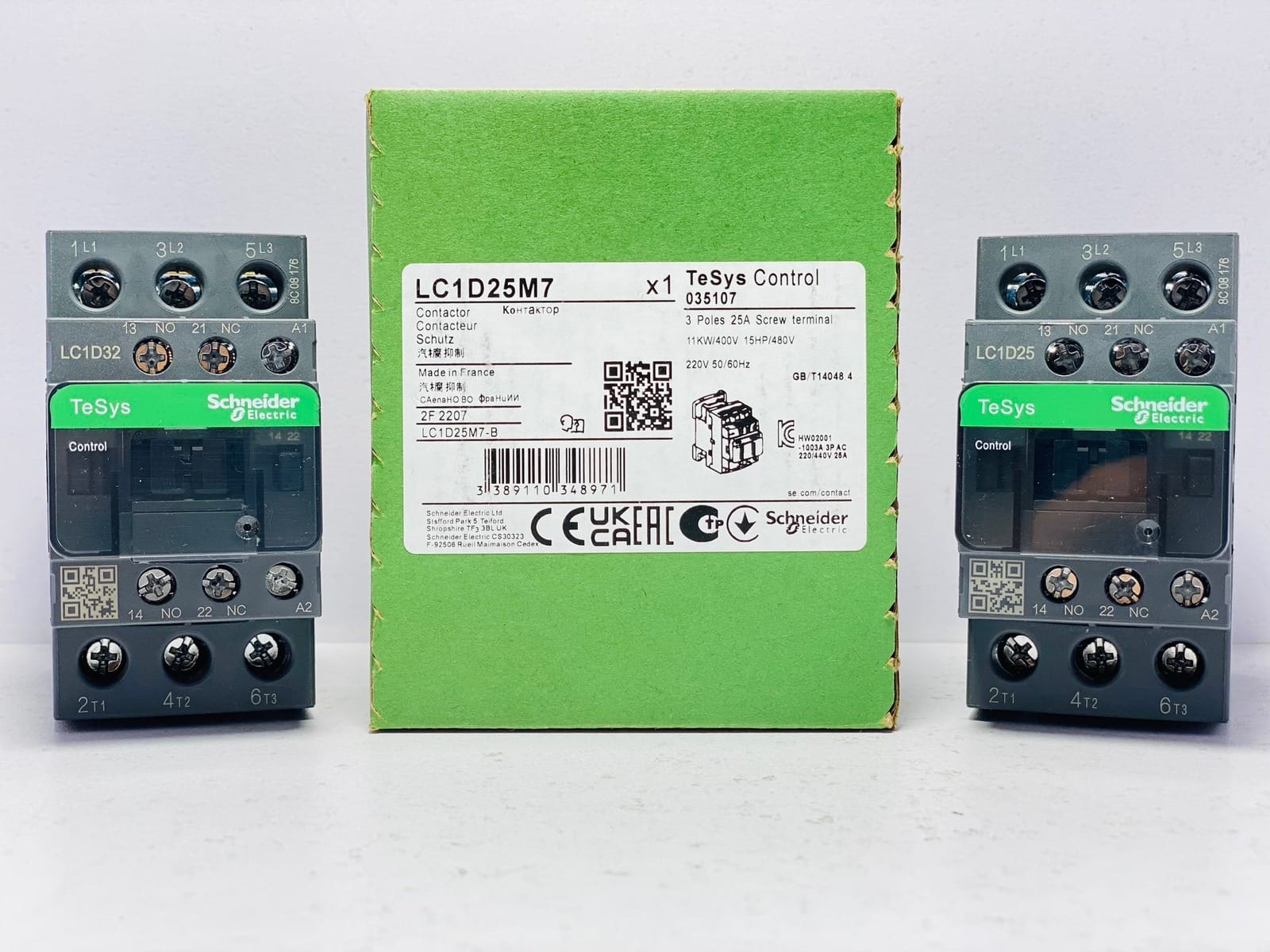

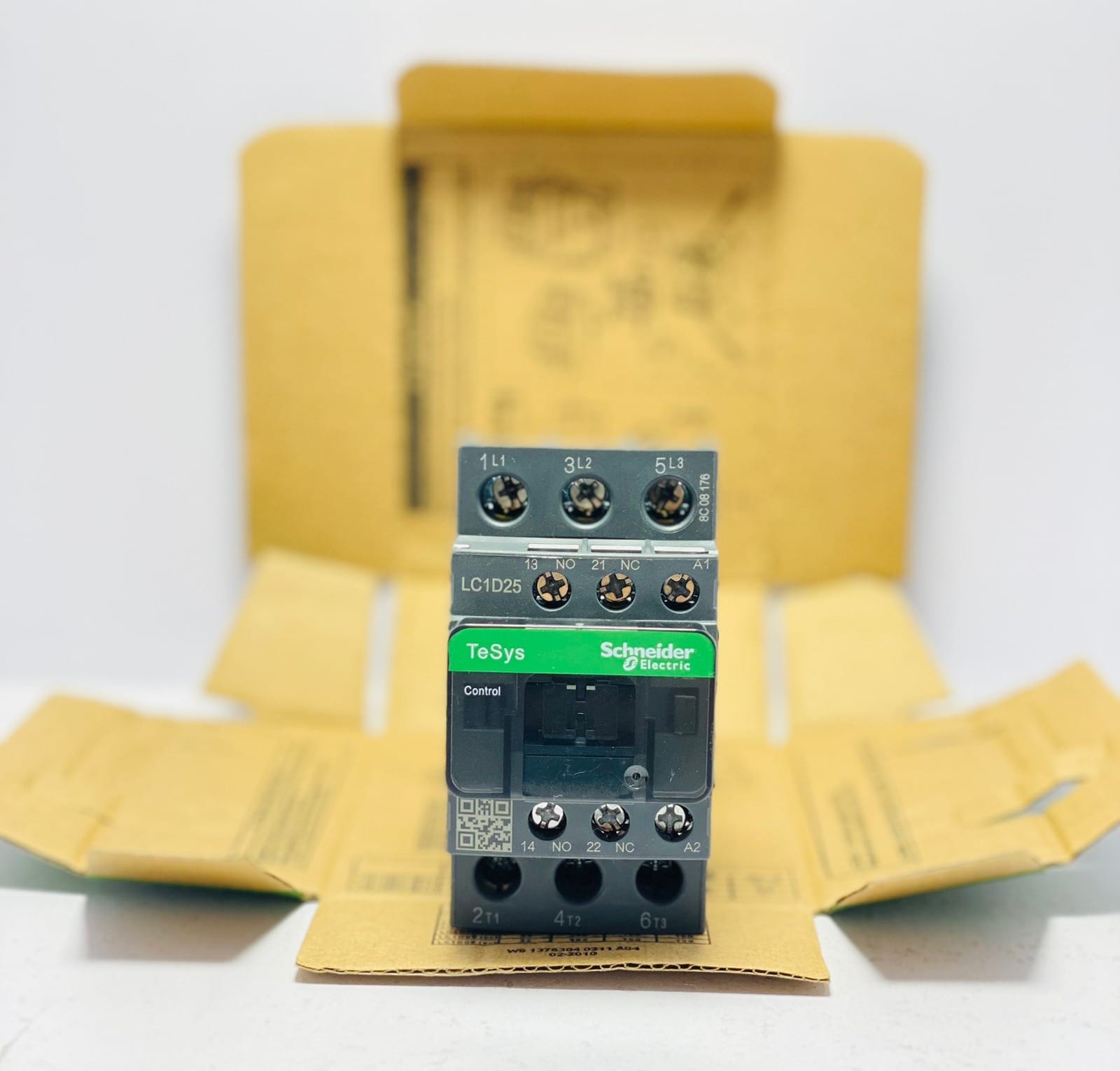

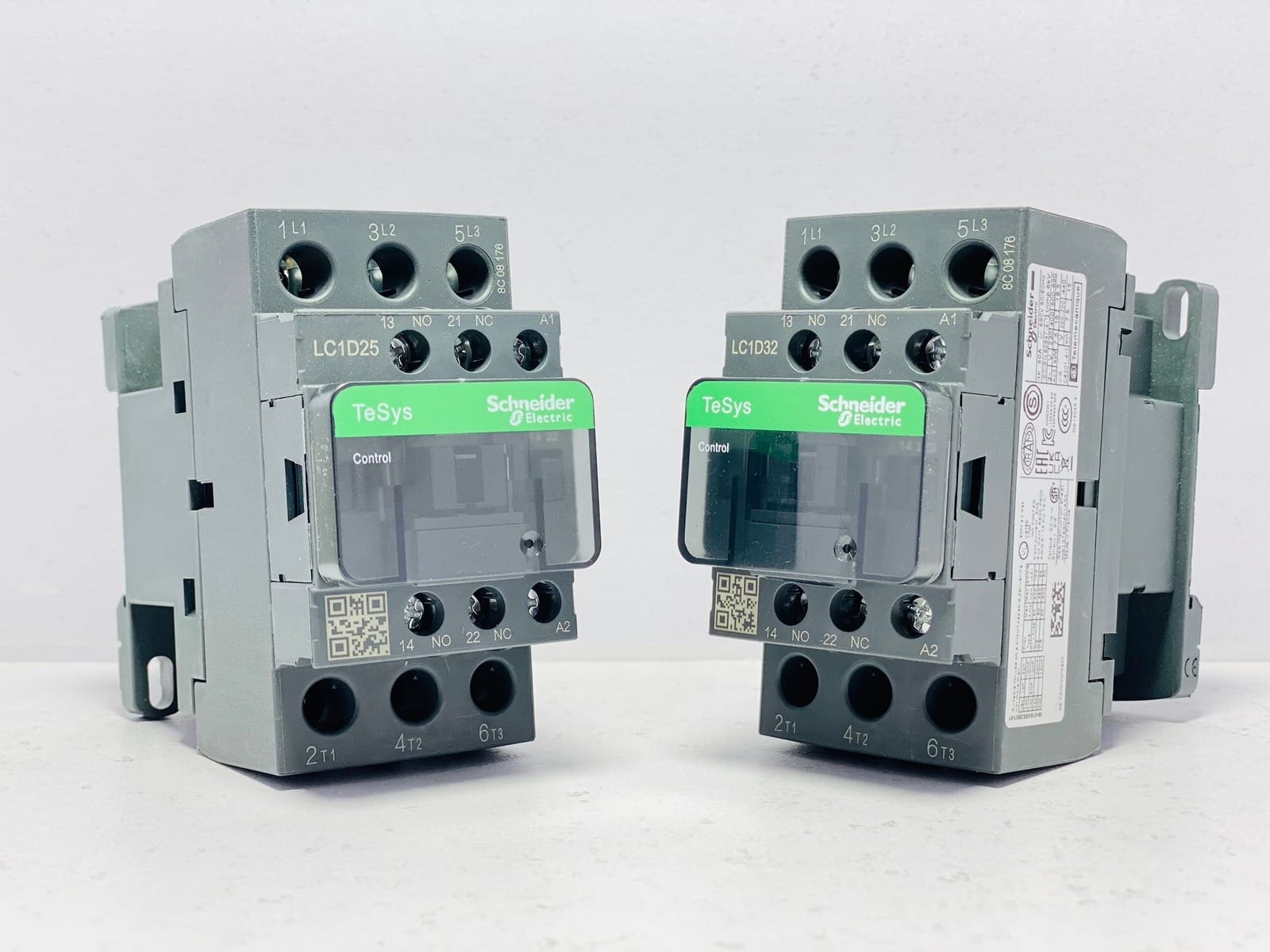

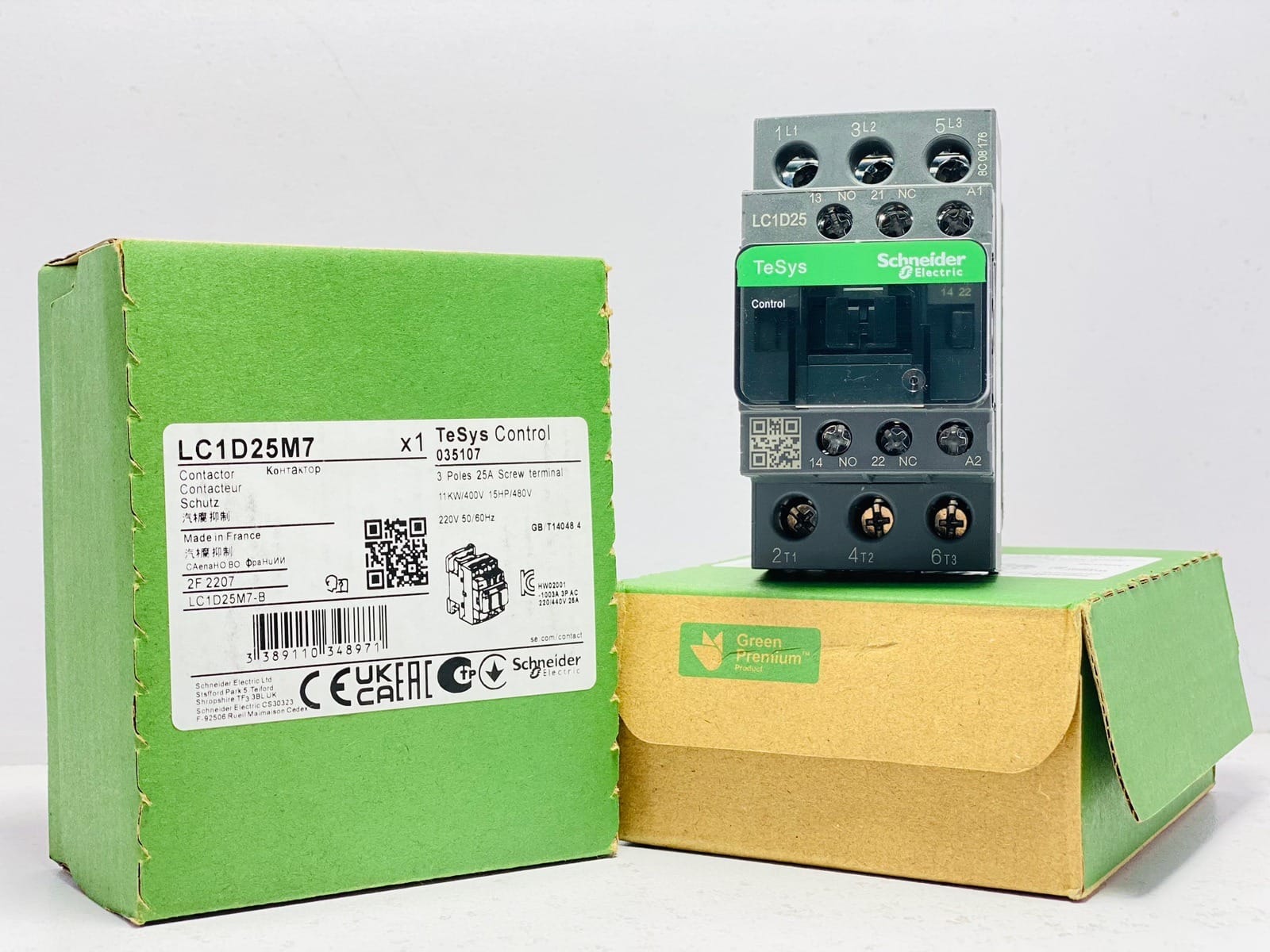

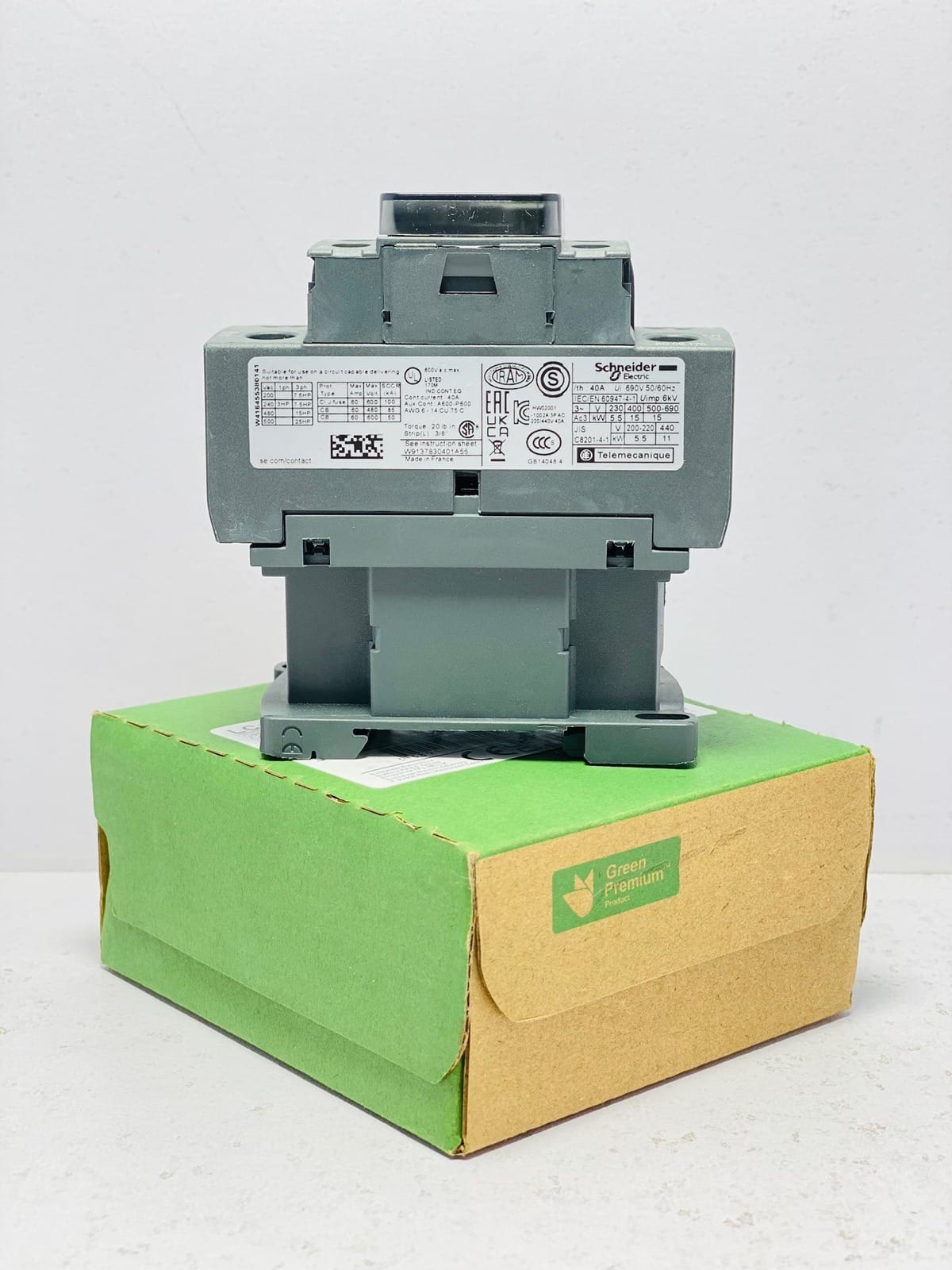

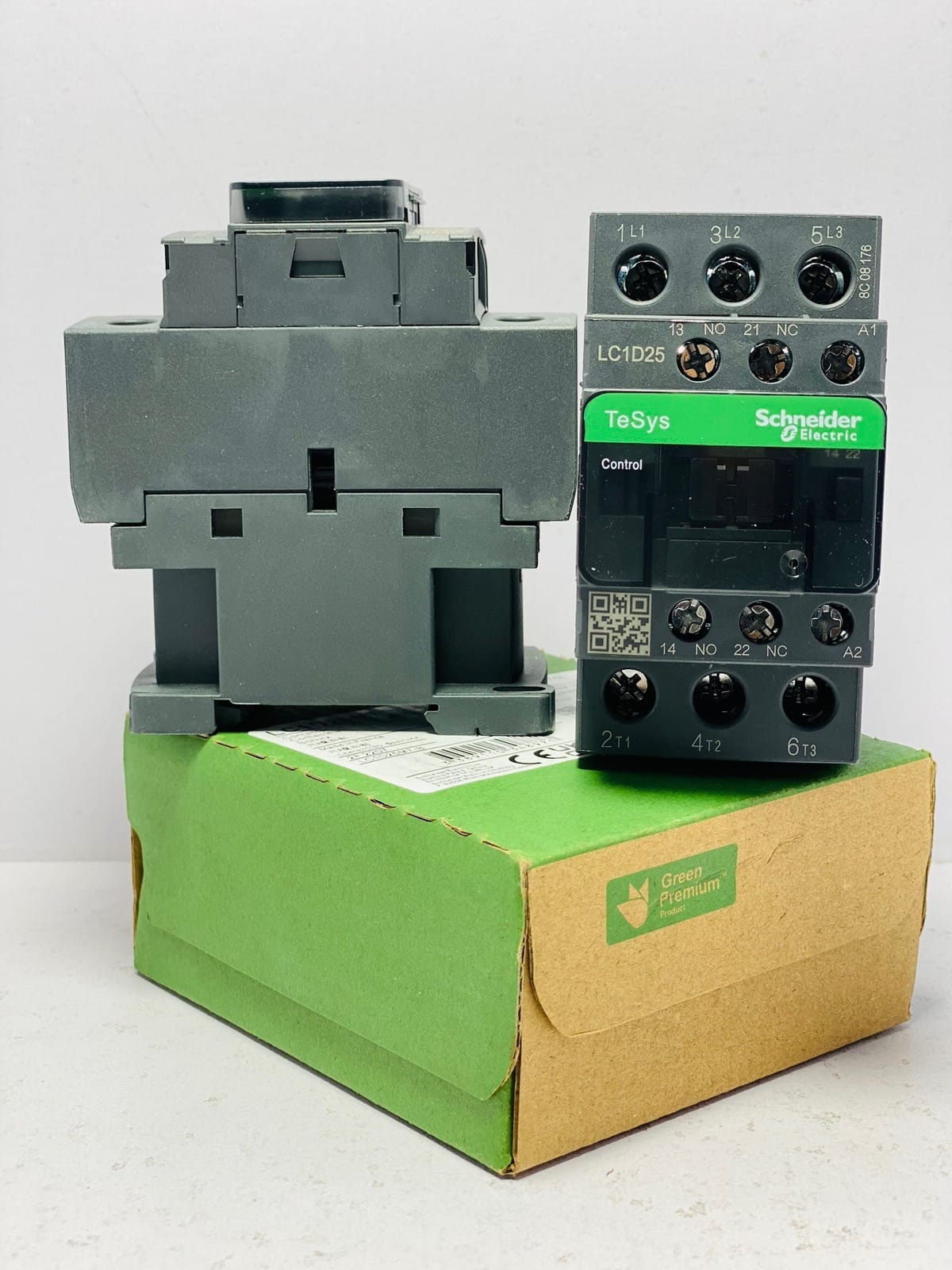

Schneider LC1D25 Magnetic Contactor 25A 220V

The Schneider LC1D25 magnetic contactor is a 3-pole TeSys D contactor designed for reliable switching and control of three-phase motors and other suitable electrical loads. The LC1D25M7 version features a 220V AC coil and a 25A AC-3 operational current rating, making it a practical choice for industrial, commercial and control-panel applications.

This Schneider LC1D25 contactor is commonly used where dependable motor switching is required. Its 3-pole, 3-NO configuration allows the three power phases to be controlled through the contactor, while the auxiliary contact arrangement provides additional control and signalling options when required. Schneider specifies the LC1D25M7 for AC-3/AC-3e applications up to 440V, with the wider TeSys D range supporting power circuits up to 690V depending on the applicable utilization category and conditions.

One important specification to check before ordering is the difference between AC-3 and AC-1 ratings. The LC1D25M7 is rated at 25A for AC-3 applications, while its conventional thermal current is 40A. Therefore, it should not simply be treated as a 40A motor contactor. The correct selection should always be based on the motor load, utilization category, voltage, coil voltage and manufacturer’s specifications.

The 220V AC 50/60Hz coil makes this model suitable for control systems designed around a 220V AC control supply. The contactor can be mounted in electrical control panels and is suitable for applications such as motor starters, pumps, compressors, HVAC equipment and other industrial control systems where its electrical ratings are appropriate.

If you are searching for a Schneider LC1D25 contactor in Pakistan, verify the complete model number before purchasing. LC1D25M7 specifically identifies the 220V AC coil version, while Schneider also manufactures LC1D25 variants with different coil voltages. Matching the coil voltage to your control circuit is essential.

HN Electric provides electrical products for customers in Lahore and across Pakistan. Before placing an order, compare the required motor current and application with the manufacturer’s specifications to ensure the selected contactor is appropriate for your installation.

FAQs

Q1. What is the current rating of Schneider LC1D25M7?
The LC1D25M7 is rated 25A for AC-3 applications. Its conventional thermal current is 40A, so 40A should not be treated as its AC-3 motor rating.

Q2. What is the coil voltage of LC1D25M7?
The LC1D25M7 version uses a 220V AC, 50/60Hz coil.

Q3. How many poles does LC1D25M7 have?
It is a 3-pole, 3-NO contactor.

Q4. Is LC1D25 suitable for motor control?
Yes. Schneider specifies the LC1D25 as a contactor for motor-control applications, subject to the motor’s voltage, current and utilization category requirements.
