Schneider Magnetic Contactor 4Pole LC1D95004 125A

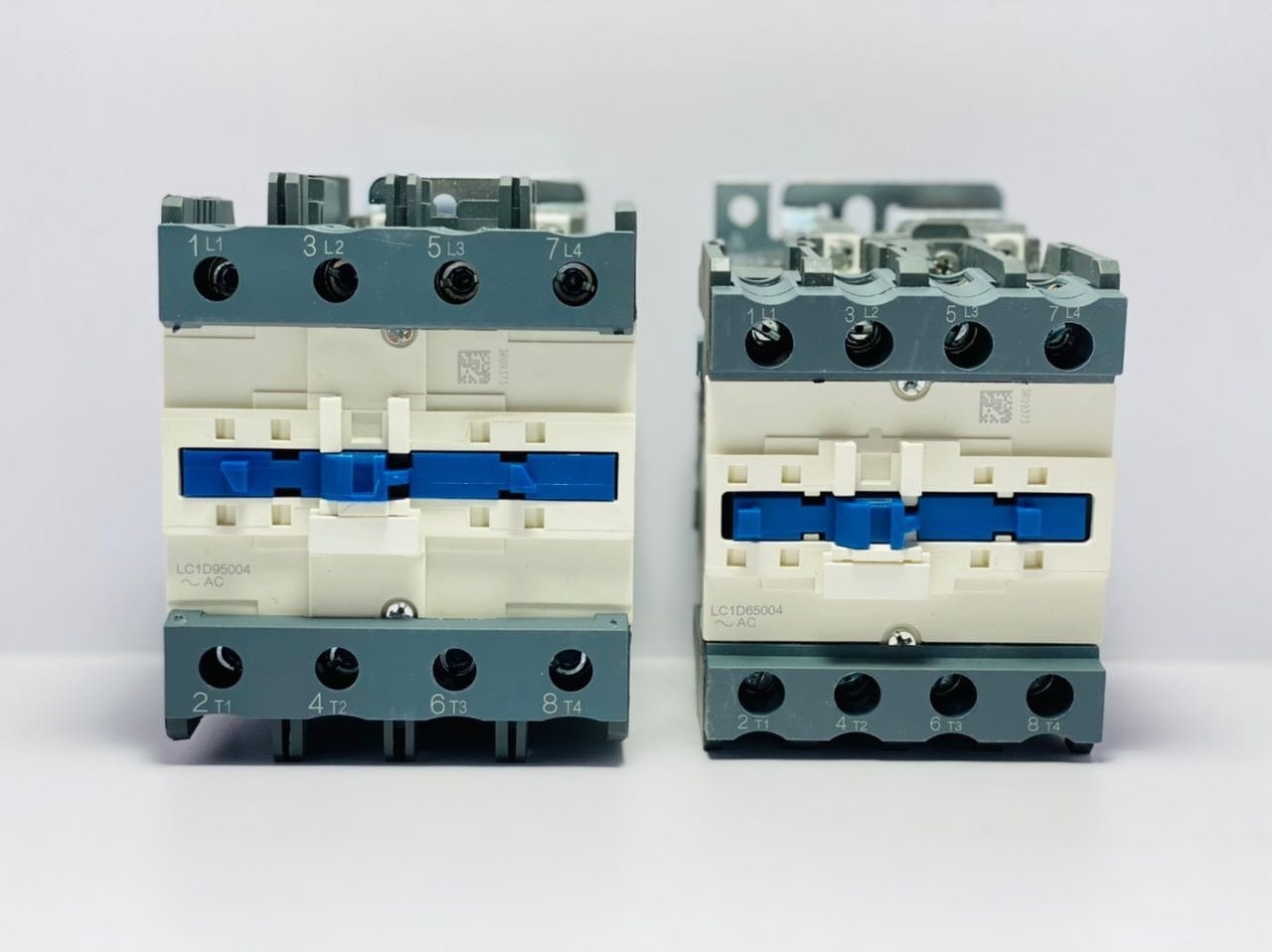

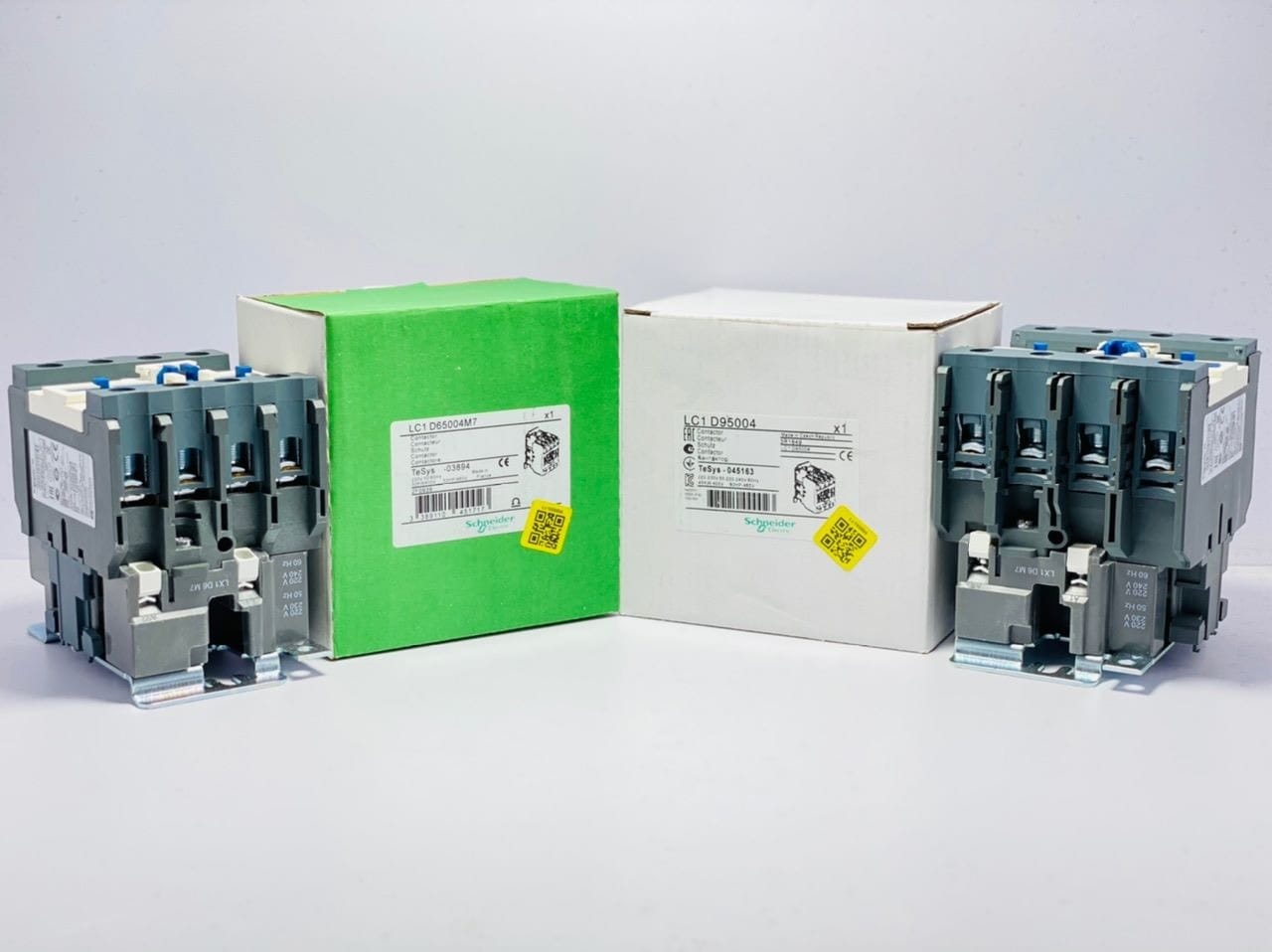

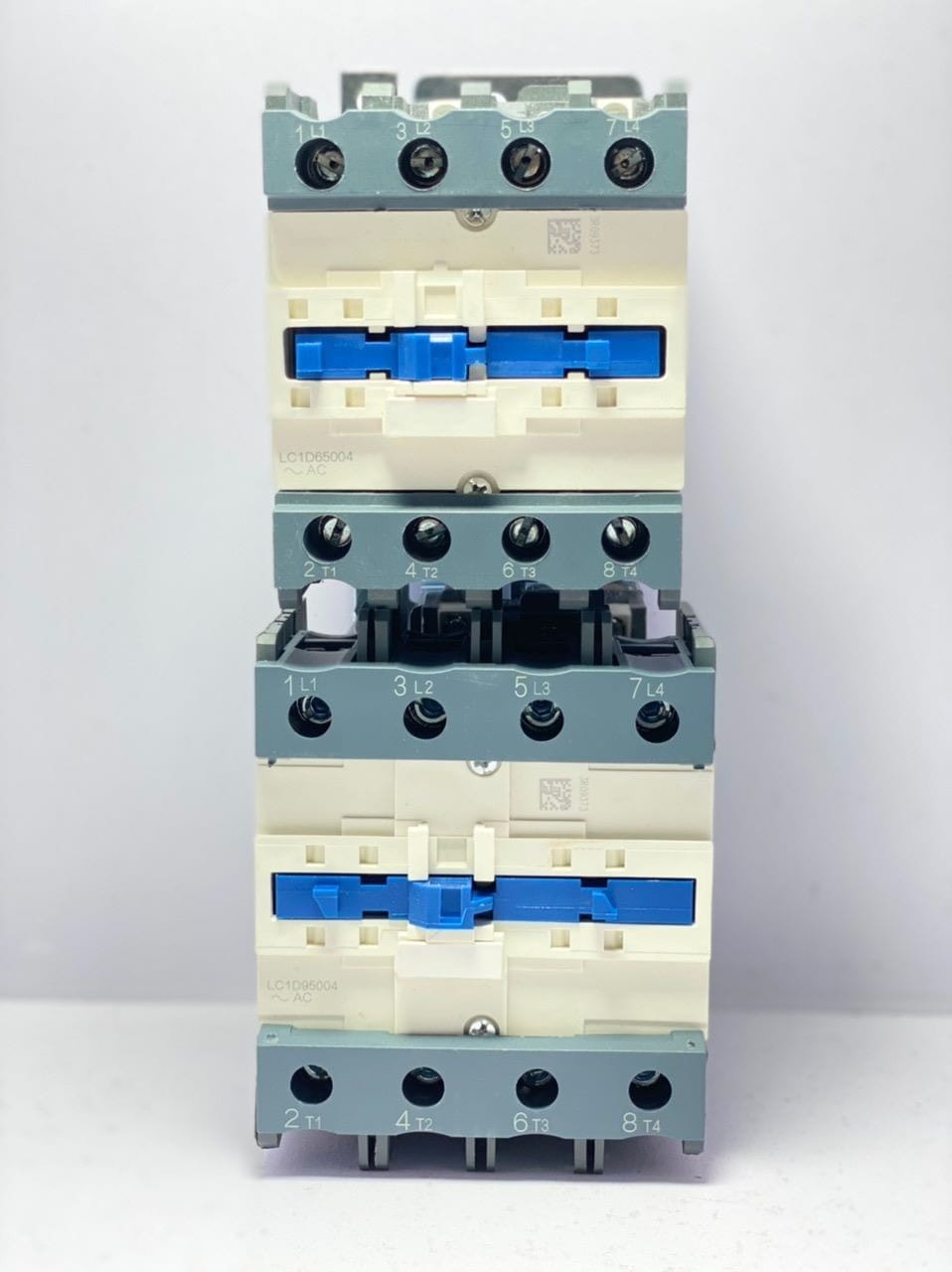

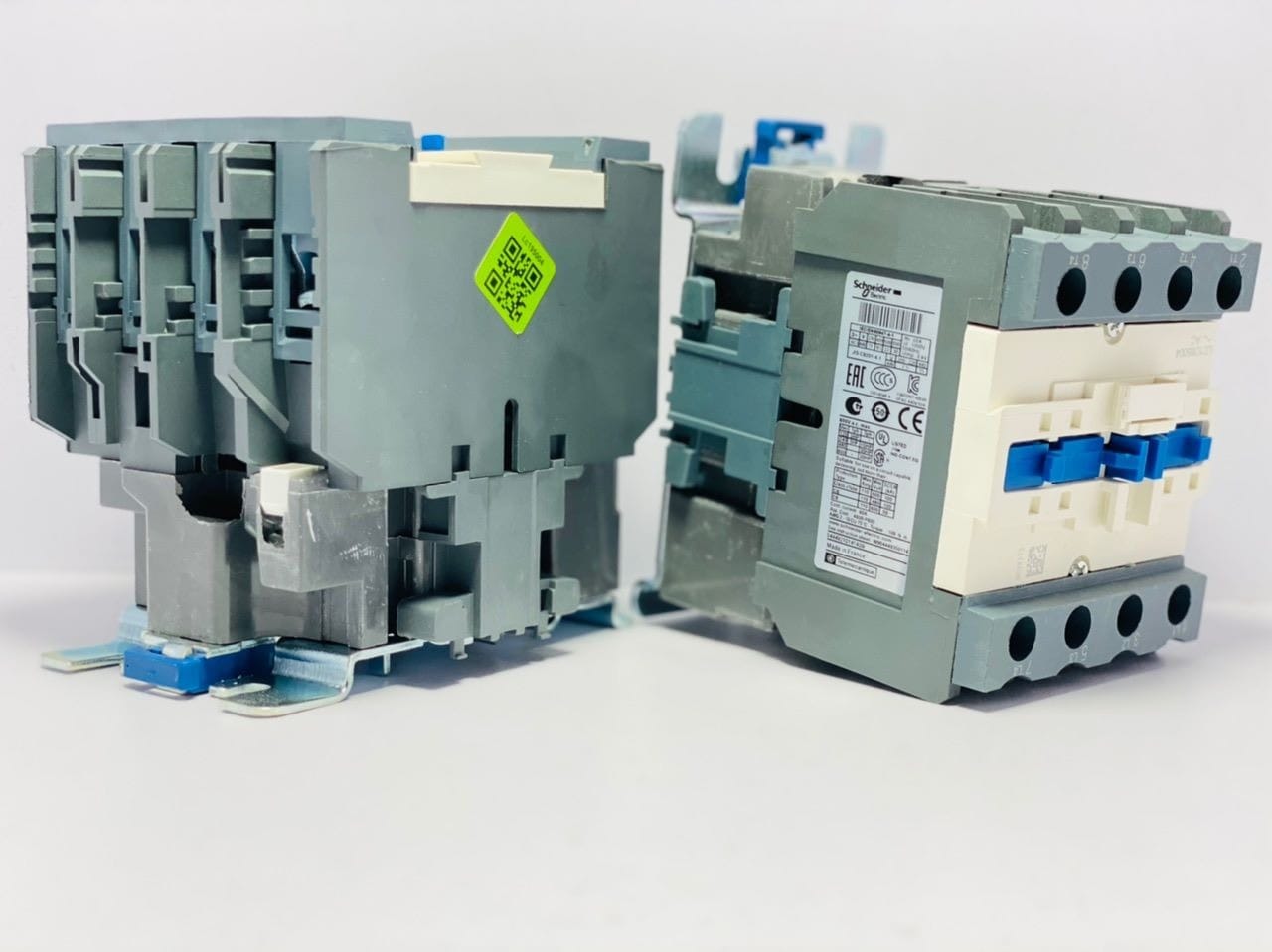

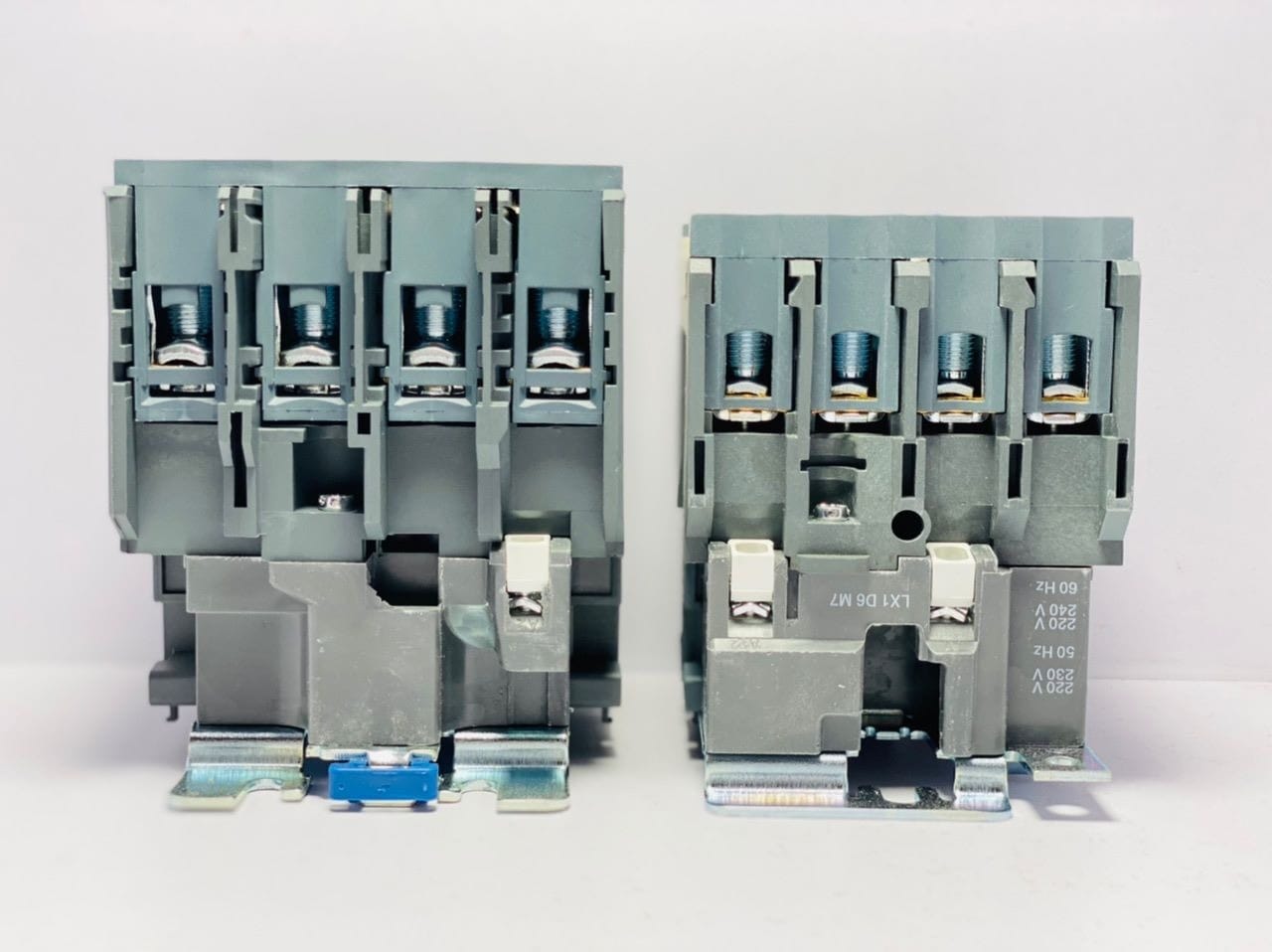

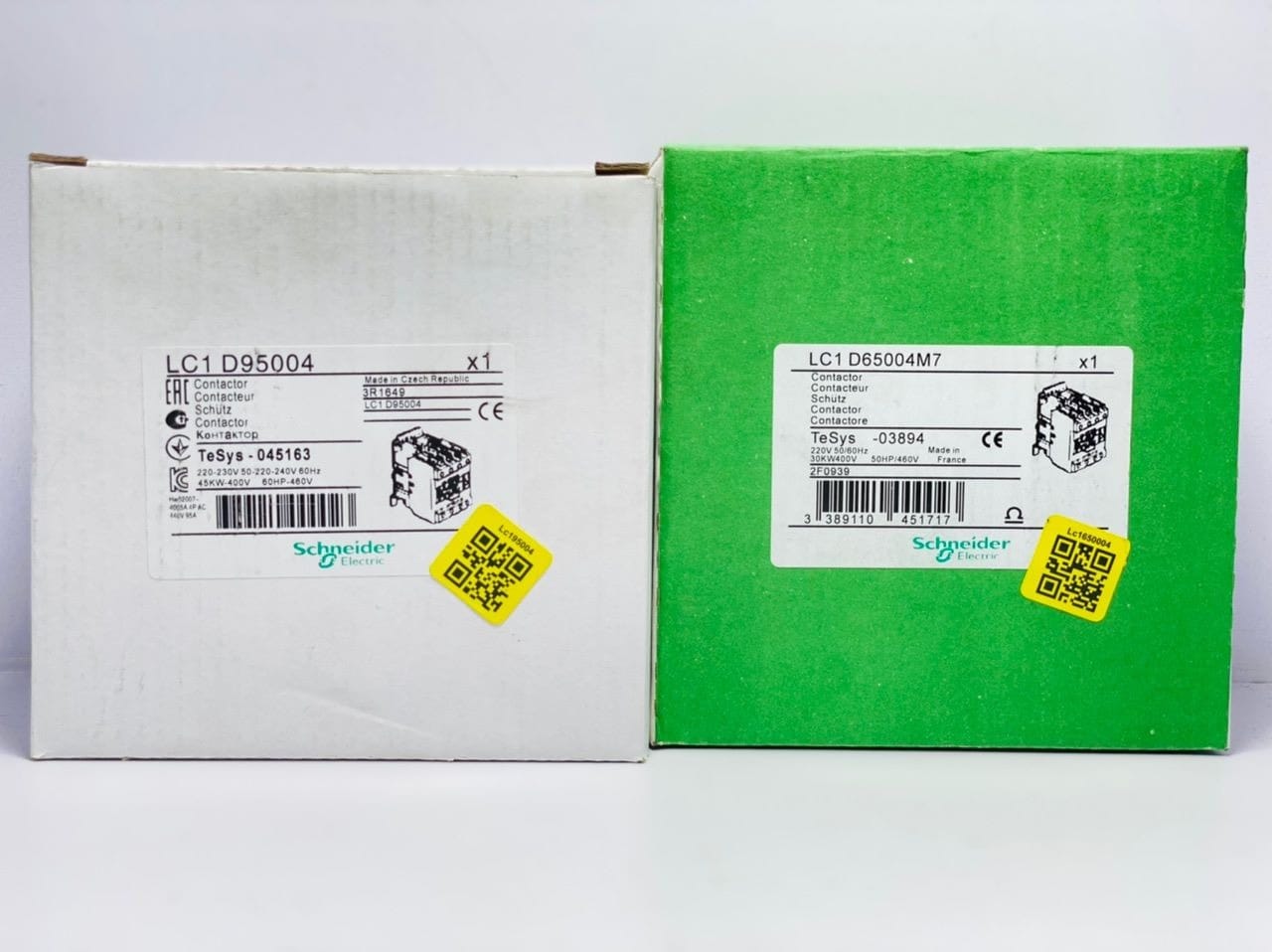

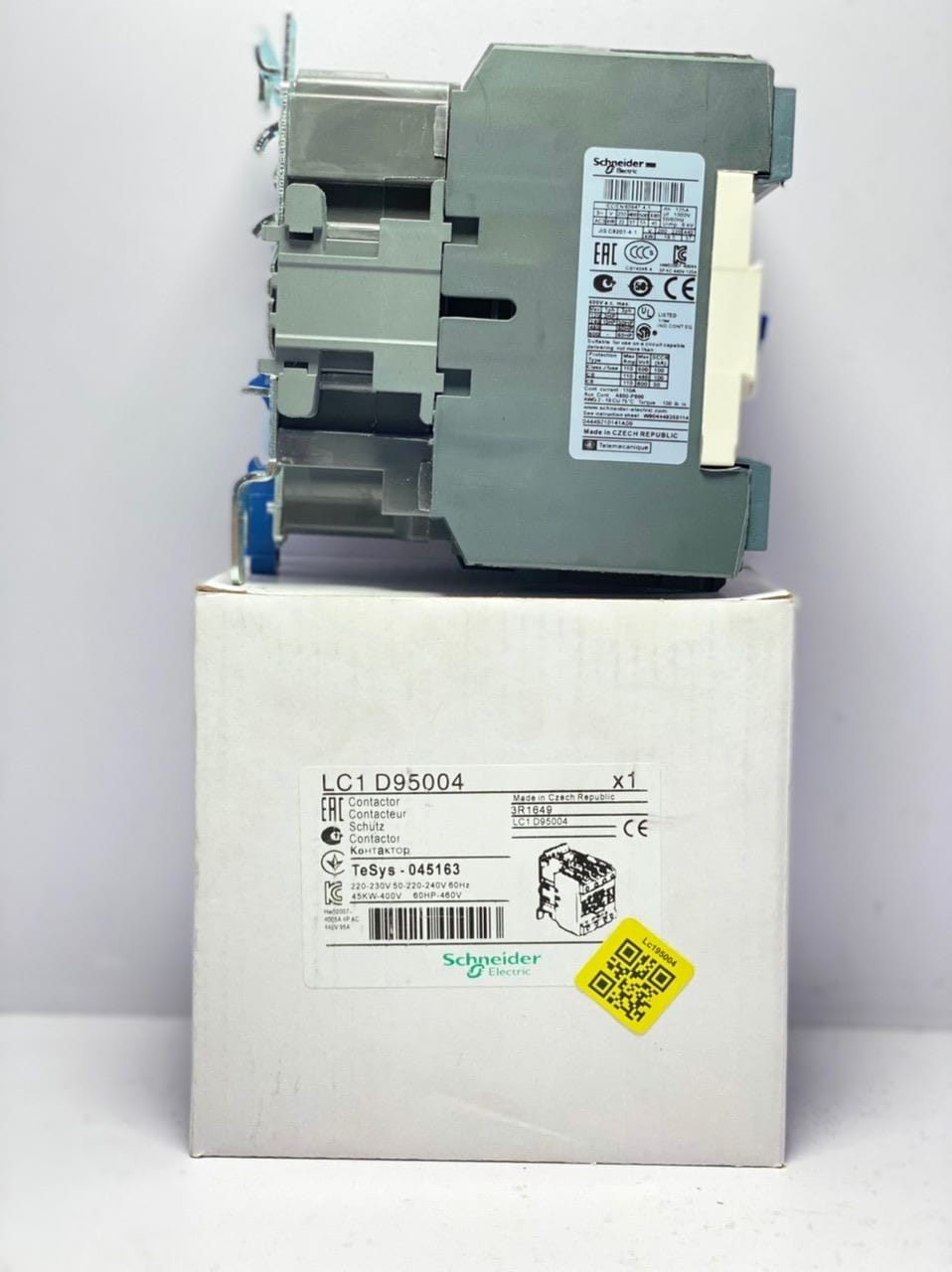

The Schneider LC1D95004 4 Pole 95A Contactor is a TeSys D magnetic contactor designed for electrical switching and control applications where a reliable four-pole contact arrangement is required. The exact LC1D95004M7 reference uses a 220V AC control coil and is commonly identified as a 95A contactor with a 125A conventional thermal current rating.

The four-pole configuration makes the Schneider LC1D95004 useful for applications where four main circuits need to be switched together. It can be used in industrial control panels, electrical distribution and switching systems, HVAC equipment, heating applications and other installations where the correct contactor rating and contact configuration are required.

The LC1D95004M7 has a 220V AC, 50/60Hz control coil, so the control circuit should be checked carefully before installation. Schneider TeSys D contactors are designed for professional electrical control systems and can be installed using suitable mounting and wiring arrangements according to the application and applicable electrical standards.

One important specification point is the difference between the operational current and the thermal current. The D95 range is associated with a 95A operational rating, while Schneider documentation specifies a conventional free-air thermal current of 125A at temperatures up to 60°C. Therefore, the Schneider LC1D95004 should not be advertised as a 125A AC-3 motor contactor. The exact load category, voltage, motor duty and installation conditions should always be checked before selecting a contactor.

The complete model reference is important because Schneider produces similar contactors with different coil voltages. The “M7” suffix identifies the 220V AC coil version, while other suffixes can represent different control voltages. Buyers should therefore verify the complete LC1D95004M7 reference before ordering.

If you are searching for the Schneider LC1D95004 contactor price in Pakistan, HN Electric provides the opportunity to check the latest price, stock status and product specifications before placing an order. For replacement or retrofit applications, compare the complete electrical and mechanical specifications rather than selecting a contactor based only on its ampere rating.

For professional installations, confirm the required current rating, AC-1 or AC-3 utilisation category, coil voltage, number of poles and auxiliary-contact requirements before installation. This helps ensure that the selected Schneider contactor matches the actual electrical application.

FAQs

Q1. What is the rating of Schneider LC1D95004M7?
The LC1D95004M7 is a 95A contactor, with a 125A conventional free-air thermal current (Ith) according to the D95 documentation.

Q2. How many poles does LC1D95004M7 have?
It is a 4-pole contactor. The exact M7 variant is listed as a 4-pole, 95A model.

Q3. What is the coil voltage of LC1D95004M7?
The M7 version has a 220V AC coil.

Q4. Is LC1D95004 a 125A AC-3 contactor?
No. The 125A figure should not be marketed as a 125A AC-3 rating. The D95 documentation identifies 95A as the operational rating and 125A as the conventional thermal current.
