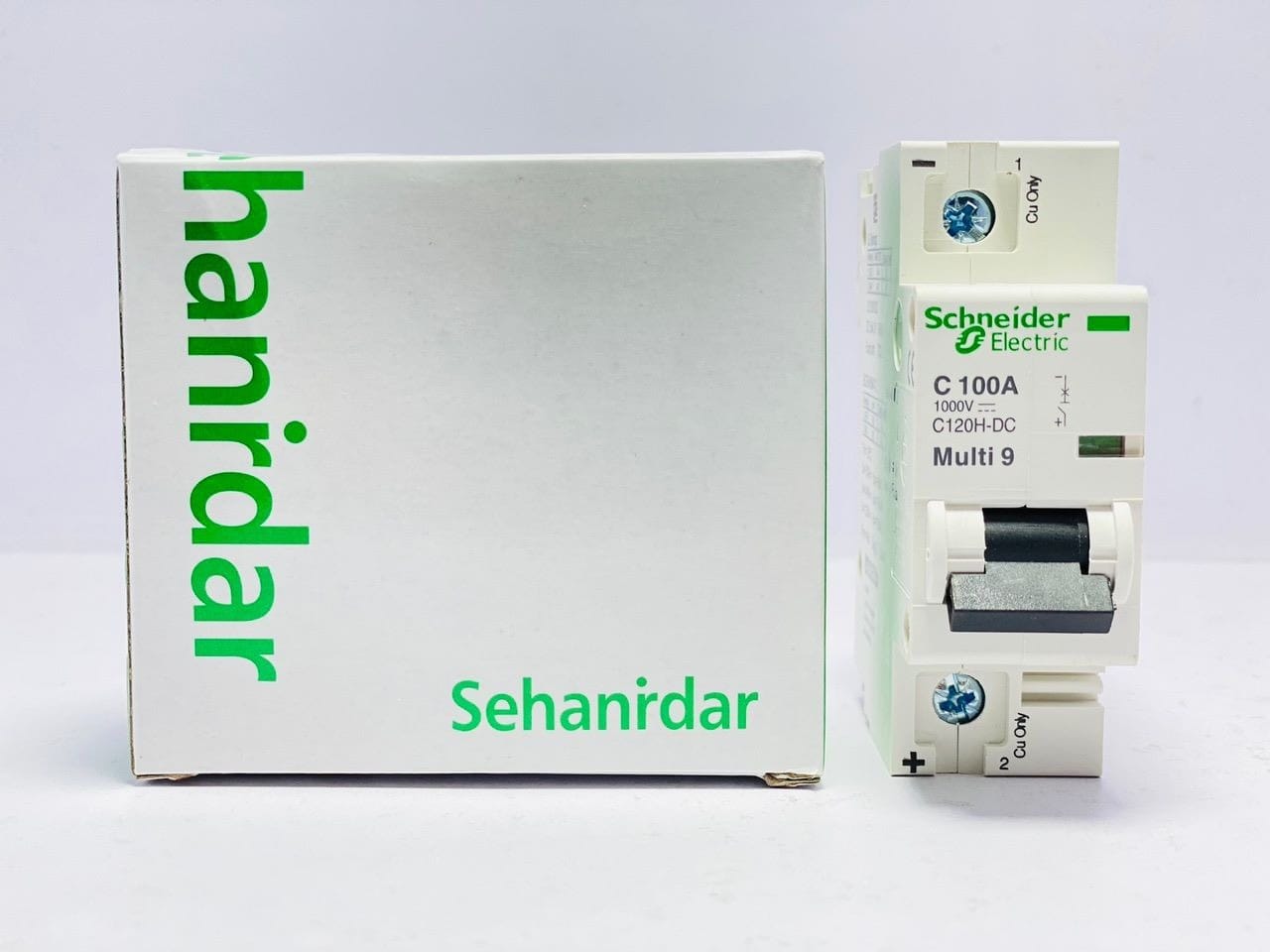

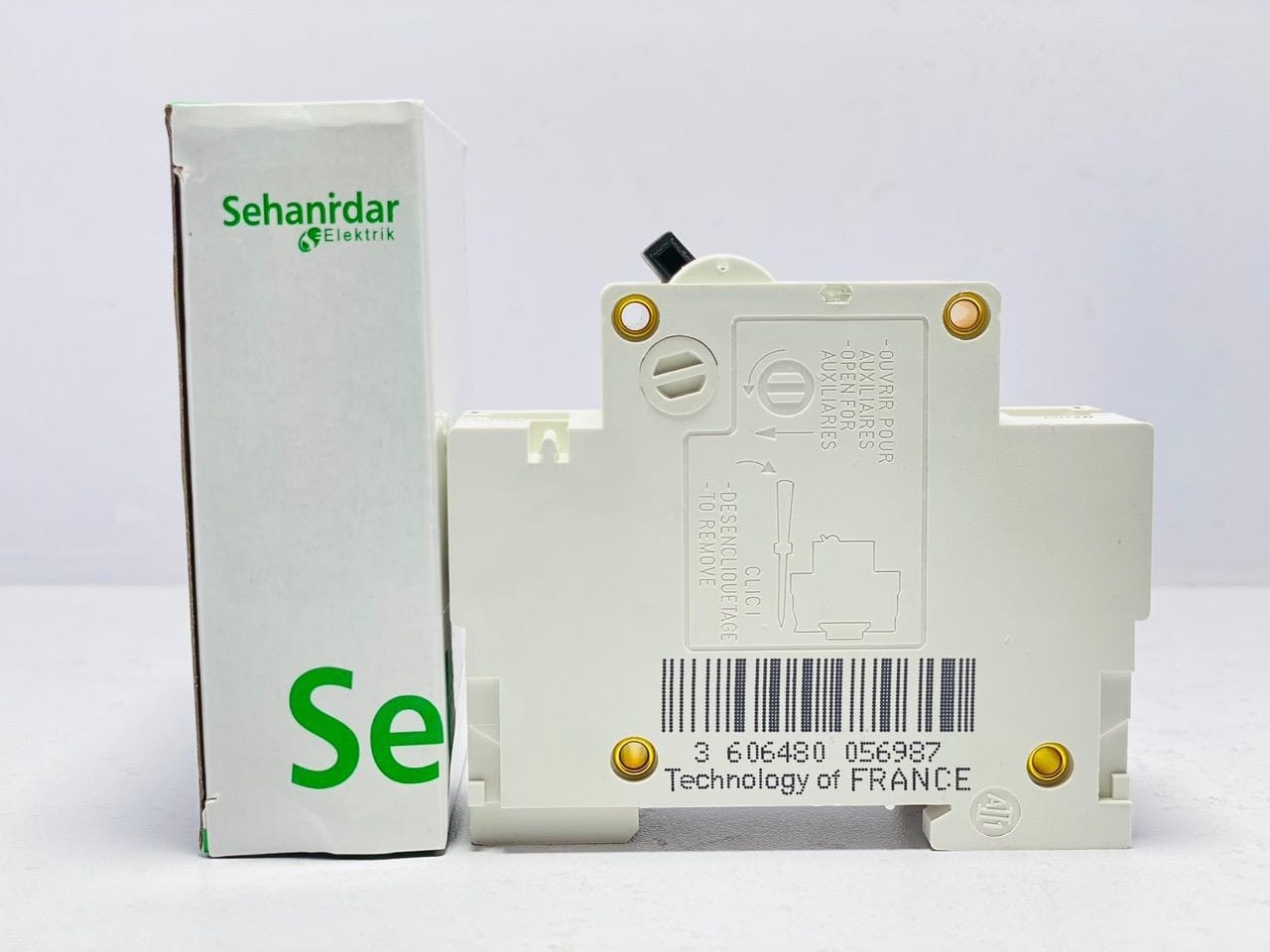

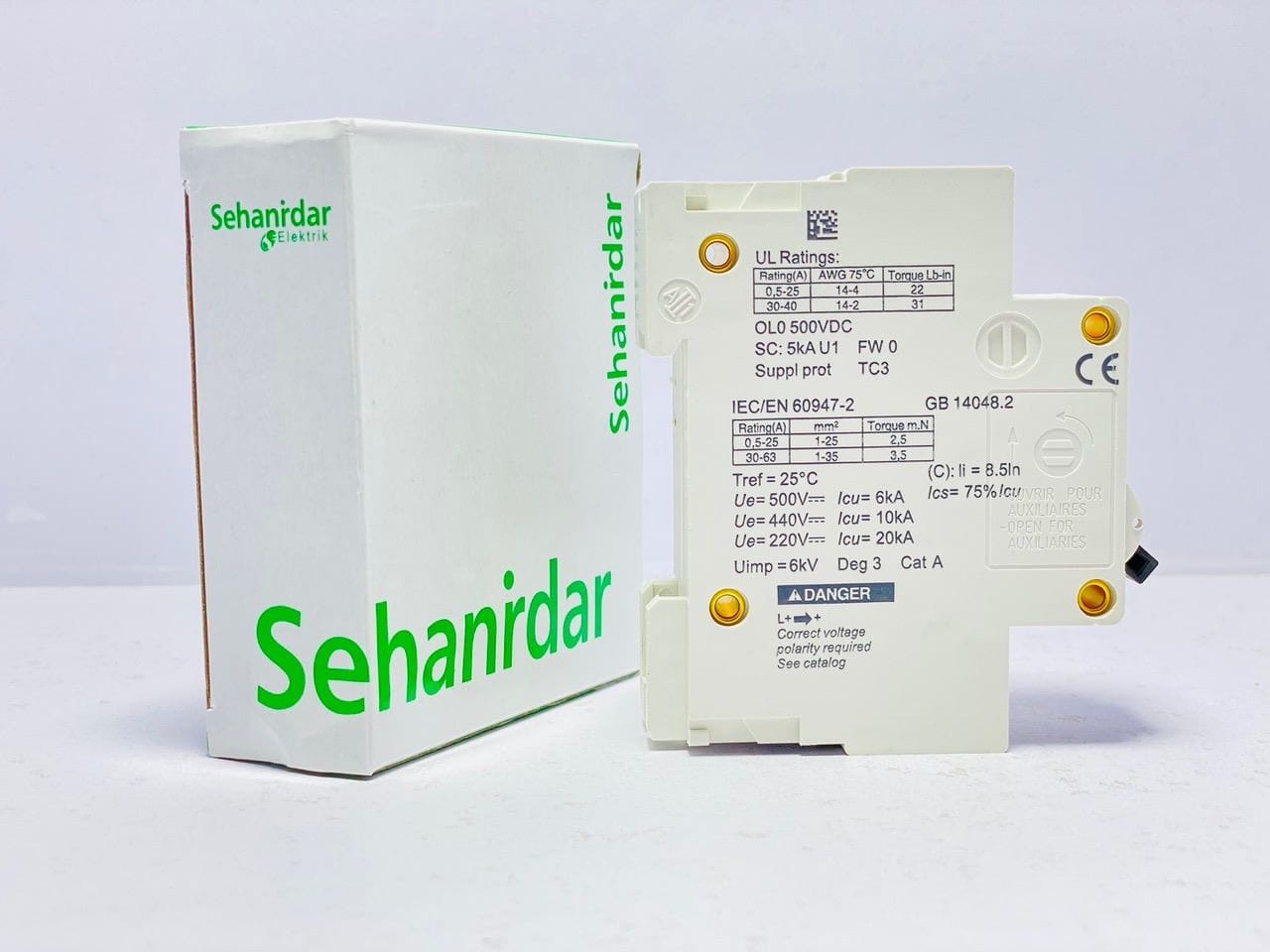

Schneider 1P AC DC Circuit Breaker

The Schneider 1P AC DC Circuit Breaker is a single-pole circuit protection device designed for electrical applications where the correct AC or DC protection rating is required. Its compact single-pole configuration makes it suitable for compatible distribution boards, control panels and other electrical installations where individual circuit protection is needed.

Choosing the correct circuit breaker is important because the breaker must match the electrical characteristics of the installation. Current rating, operating voltage, breaking capacity, application type and the manufacturer’s specified operating conditions should all be checked before installation. For DC applications in particular, the breaker must have an appropriate DC rating rather than simply being an AC breaker used on a DC circuit.

Schneider offers several circuit breaker families with different electrical characteristics, so customers should verify the exact model and rating before ordering. For example, a current Pakistani listing for the Schneider C120H-DC identifies a 1-pole breaker rated at 80A and 1000V DC, with DIN-rail mounting and a 1200V DC insulation rating. This is a substantially different product specification from Schneider’s standard low-voltage iC60N 1P AC MCB range.

The Schneider 1P AC DC Circuit Breaker can be a practical choice for installers, electricians, solar professionals and electrical-panel manufacturers who require a branded protection device for a compatible application. Before selecting the product, confirm the required amperage, voltage and breaking capacity against the system design and the equipment manufacturer’s requirements.

For customers in Pakistan, HN Electric can position this product around accurate specifications rather than simply competing on the generic term “Schneider breaker.” The product page should clearly display the exact Schneider model number, current rating, AC/DC voltage rating, breaking capacity, mounting method and applicable standards.

This is particularly important because online Pakistani marketplaces contain several products using the Schneider name while being listed under “No Brand.” Providing clear product identification and technical information can therefore make the HN Electric listing more useful to customers comparing different breakers.

Whether the requirement is for a distribution board, electrical control panel or another compatible installation, always select the breaker according to the actual circuit requirements. If you are unsure about the correct rating, consult a qualified electrician or electrical engineer before installation.

FAQs

Q1. What is a Schneider 1P circuit breaker used for?
A 1P circuit breaker provides protection for an individual electrical circuit against applicable overload and short-circuit conditions.

Q2. Can this Schneider breaker be used for both AC and DC?
Only if the exact model is specifically rated for both applications. Check the manufacturer’s specifications before using it on a DC circuit.

Q3. What ampere ratings are available?
The rating depends on the specific Schneider model. For example, one Pakistani listing identifies a C120H-DC version as 80A.

Q4. Can I use a normal AC MCB on a DC circuit?
Not unless the specific breaker is rated for that DC application. AC and DC arc-interruption characteristics differ, so the correct DC-rated device must be selected.
