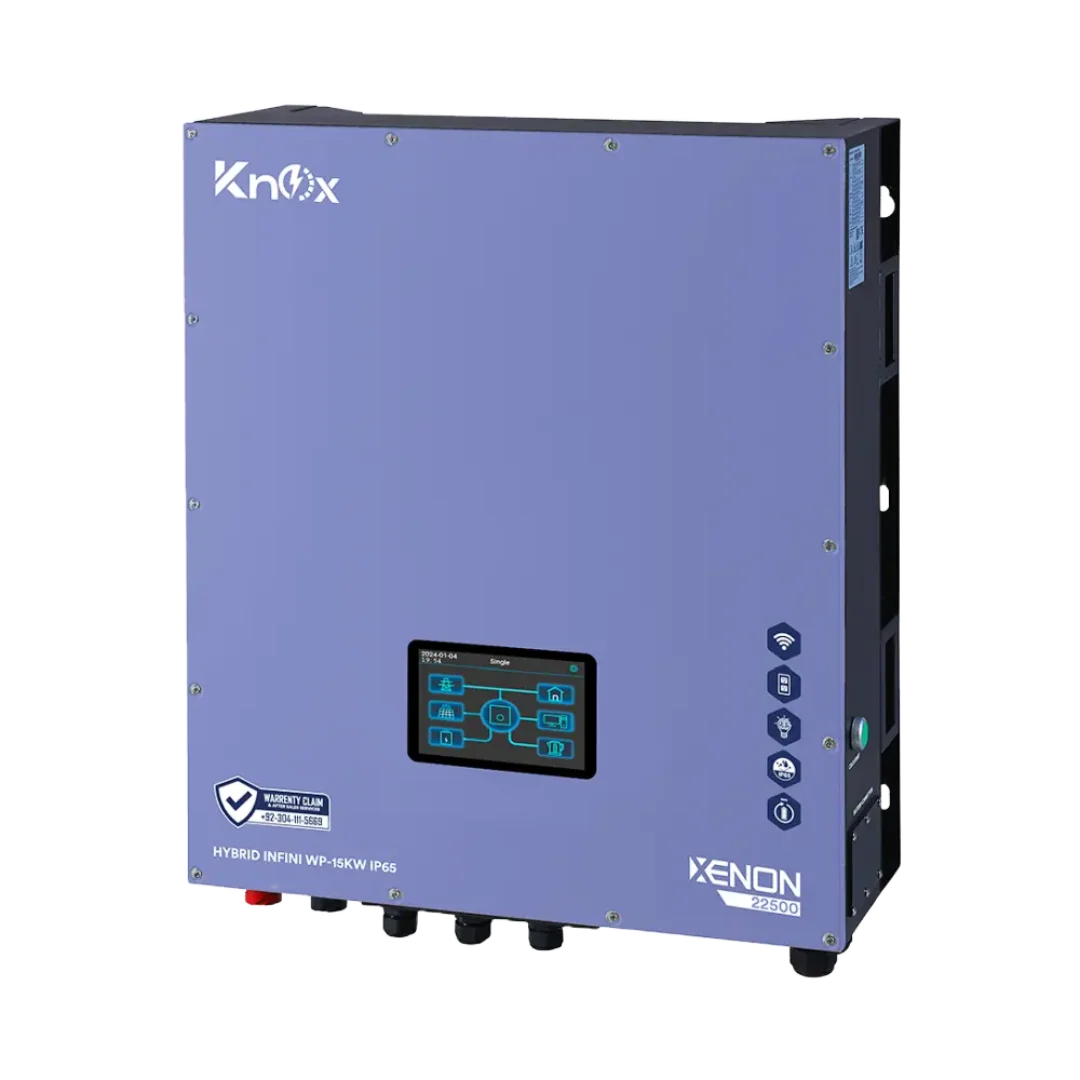

Knox Xenon 22500 15kW Three Phase Hybrid Solar Inverter

Three-Phase Solar Power and Battery Integration

The Knox Xenon 22500 15kW hybrid solar inverter is designed for installations that need three-phase power alongside solar generation and battery storage. It is an option for suitably assessed commercial properties, larger homes and other sites with compatible electrical infrastructure.

Before choosing this model, have a qualified installer calculate simultaneous demand, starting loads and the distribution of equipment across phases. Total inverter capacity alone cannot establish whether every connected appliance or machine will operate correctly.

15kW Output with 22.5kW Solar Input

KNOX’s official datasheet specifies 15,000W rated output and 22,500W maximum PV input. These figures describe different capabilities: the larger solar input allowance does not increase continuous AC output to 22.5kW.

A properly designed array must satisfy every applicable electrical limit. Your installer should check panel open-circuit voltage, temperature effects, operating current and string configuration before finalizing panel quantity.

Dual MPPT for Array Planning

Two MPPT trackers provide separate tracking channels for compatible panel groups. This gives installers options when arranging the solar array, subject to the equipment’s voltage and current requirements.

Roof orientation, shading and available space should guide the layout. Increasing panel capacity without checking these conditions may produce a system that does not perform as expected.

Battery Storage and Load Management

The model uses a nominal 48V battery platform. Select batteries according to usable energy, permitted discharge power and confirmed compatibility with the inverter’s communication and charging settings.

Dual outputs support load management in a professionally configured installation. Essential and less critical circuits should be allocated according to the manufacturer’s instructions, with phase loading assessed throughout the design.

Backup duration depends on stored energy and the connected load. Request an energy calculation for the circuits you want to operate during an outage.

Monitoring and Expansion

The official documentation lists Wi-Fi communication and a seven-inch touchscreen interface. Ask your installer to explain system information, operating modes and any monitoring setup requirements during commissioning.

Parallel operation is supported for up to six units. Expansion requires compatible equipment, communication arrangements and a complete review of batteries, cabling and protection. Confirm the necessary hardware before purchasing additional units.

Enclosure and Installation

The current datasheet lists IP66 protection. Follow KNOX’s installation instructions for location, ventilation, cable entries and mounting clearances. Keep the equipment away from flood-prone areas and unsuitable exposure.

A qualified solar electrician should complete the installation, including earthing, isolation and correctly coordinated protective devices. Three-phase wiring and high-voltage PV connections require particular care.

Order from HN Electric

For the latest Knox Xenon 22500 price in Pakistan, request a quotation identifying the exact model revision, accessories and installation scope. Confirm stock availability, delivery charges and written warranty terms before ordering.

If grid export is part of your project, have the installer confirm the required configuration and applicable utility approval before commissioning.

Frequently Asked Questions

1. Is the Knox Xenon 22500 a 15kW or 22.5kW inverter?

Its rated output is 15kW. The 22,500W figure describes maximum PV input, not continuous AC output.

2. Is it suitable for a single-phase property?

This is a three-phase inverter. Your installer must confirm that the property’s supply and distribution arrangement are suitable before purchase.

3. How many solar panels can I connect?

Panel quantity depends on module wattage, voltage and current. An installer must design the strings within the exact model’s PV limits.

4. Which batteries are compatible?

The model specifies a nominal 48V battery platform. Confirm the exact battery model, charging limits and communication requirements with KNOX before selecting storage.

5. Can it work without batteries?

The official datasheet lists a battery-independent design. Confirm the operating conditions and outage behaviour for your intended configuration. Without batteries, stored-energy backup is unavailable.

6. Can it connect to a generator?

KNOX lists compatibility with suitable utility or generator input. Generator sizing, voltage, frequency and connection arrangements require professional verification.

7. Can I add more inverters later?

The official datasheet supports parallel operation with up to six units. Confirm revision compatibility and required parallel equipment before planning expansion.

8. What are the price and warranty in Pakistan?

Contact HN Electric for current pricing and written warranty terms. Confirm coverage, exclusions, included accessories, installation costs and delivery charges before ordering.
