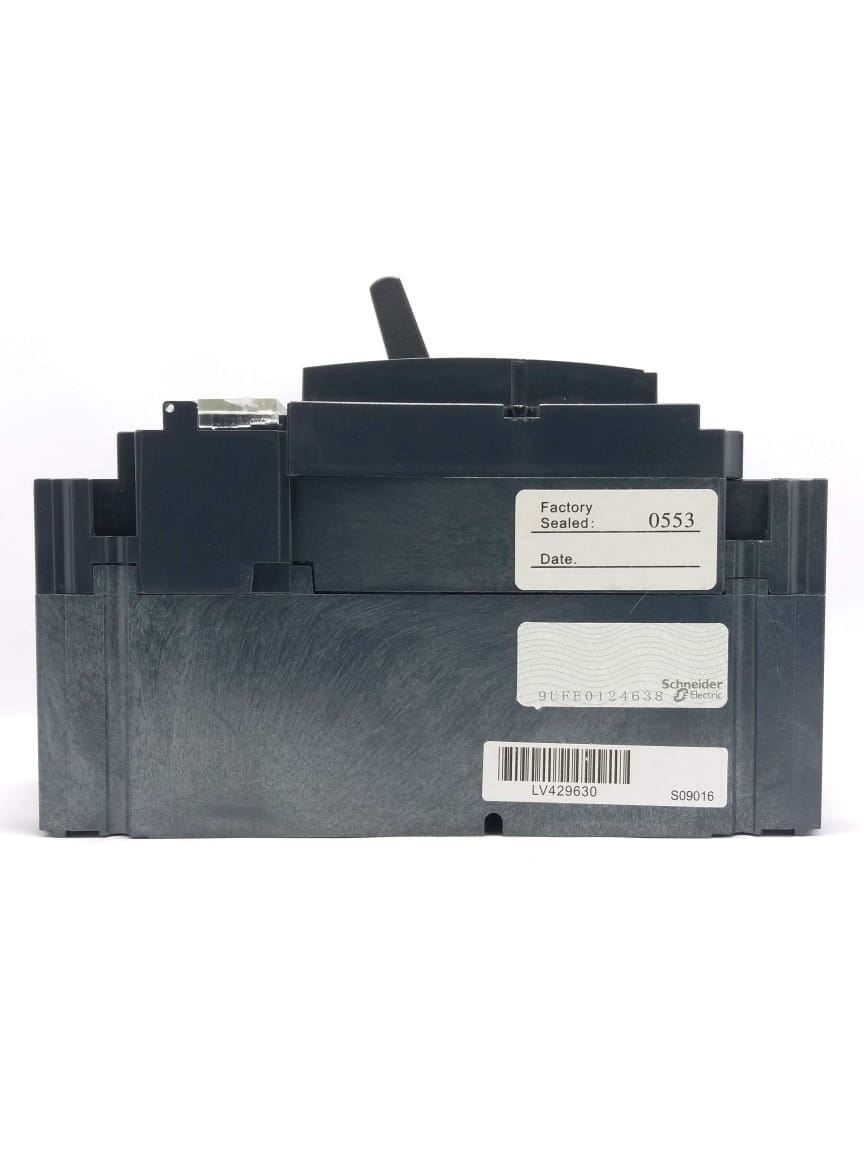

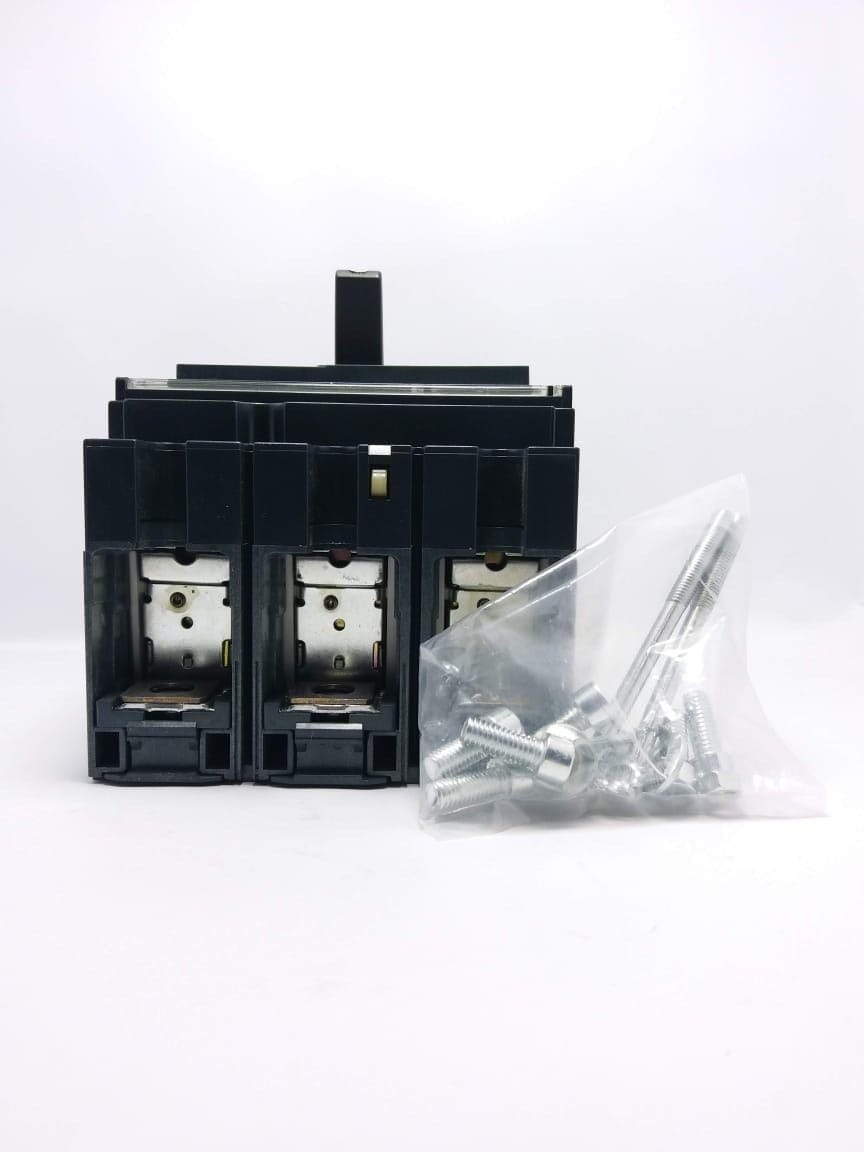

Schneider NSX250F 250A 3 pole MCCB

The Schneider NSX250F 250A 3P MCCB is a compact moulded case circuit breaker designed for reliable protection and control of electrical distribution systems. It is part of Schneider Electric’s ComPact NSX range and is suitable for commercial, industrial and electrical-panel applications where dependable circuit protection is required.

This Schneider NSX 250A 3P MCCB configuration provides three poles with a 250A rated current and is designed for AC distribution applications. The documented NSX250F 250A version uses a TM-D thermal-magnetic trip unit, providing thermal overload protection and magnetic short-circuit protection. Its rated operational voltage can reach 690V AC, while the documented F performance level provides a 36kA ultimate short-circuit breaking capacity at 380/415V AC. Exact protection characteristics should always be checked against the Schneider reference supplied with the breaker before installation.

The compact NSX design makes this breaker suitable for electrical distribution boards, industrial control panels, commercial buildings, machinery and other applications requiring MCCB-level protection. Its fixed mounting configuration and compact dimensions can also help panel builders make efficient use of available space.

For buyers searching for a Schneider NSX250F 250A 3P MCCB in Pakistan, it is important to verify more than just the ampere rating. NSX250 products are available with different breaking capacities, trip units, current ratings and accessory configurations. The exact Schneider part number should therefore be confirmed before placing an order, particularly where the installation requires a specific short-circuit rating or protection characteristic.

HN Electric can supply Schneider electrical protection equipment for projects, industrial panels and distribution applications in Lahore and across Pakistan. Customers can contact the team to confirm the exact model, current rating, breaking capacity, trip-unit specification and available accessories before purchase.

If you are comparing a 250A MCCB with another Schneider NSX model, check the system voltage, expected fault level, load current and required protection settings before selecting the breaker. This ensures that the selected MCCB matches the electrical design rather than relying on the ampere rating alone.

When purchasing a Schneider NSX250 3P MCCB, always verify the original Schneider reference, product condition, technical datasheet and warranty or supplier support. This is particularly important because NSX250F, NSX250N and other configurations can have different electrical characteristics and prices.

FAQs

Q1. What is the Schneider NSX250 3P MCCB?
It is a three-pole ComPact NSX moulded case circuit breaker designed for electrical distribution and circuit protection applications.

Q2. What is the rating of the Schneider NSX250F 3P MCCB?
The documented NSX250F TMD configuration is rated at 250A at 40°C and has three poles.

Q3. What is the breaking capacity of NSX250F 250A 3P?
The documented NSX250F configuration has a 36kA Icu at 380/415V AC. Always verify the exact reference because NSX250 configurations can differ.

Q4. What is the price of Schneider NSX250 250A MCCB in Pakistan?
Price depends on the exact NSX250F/NSX250N model, trip unit and breaking capacity. Current Pakistani listings show significant price differences between configurations, so HN Electric should publish the price against the exact Schneider reference being sold.
