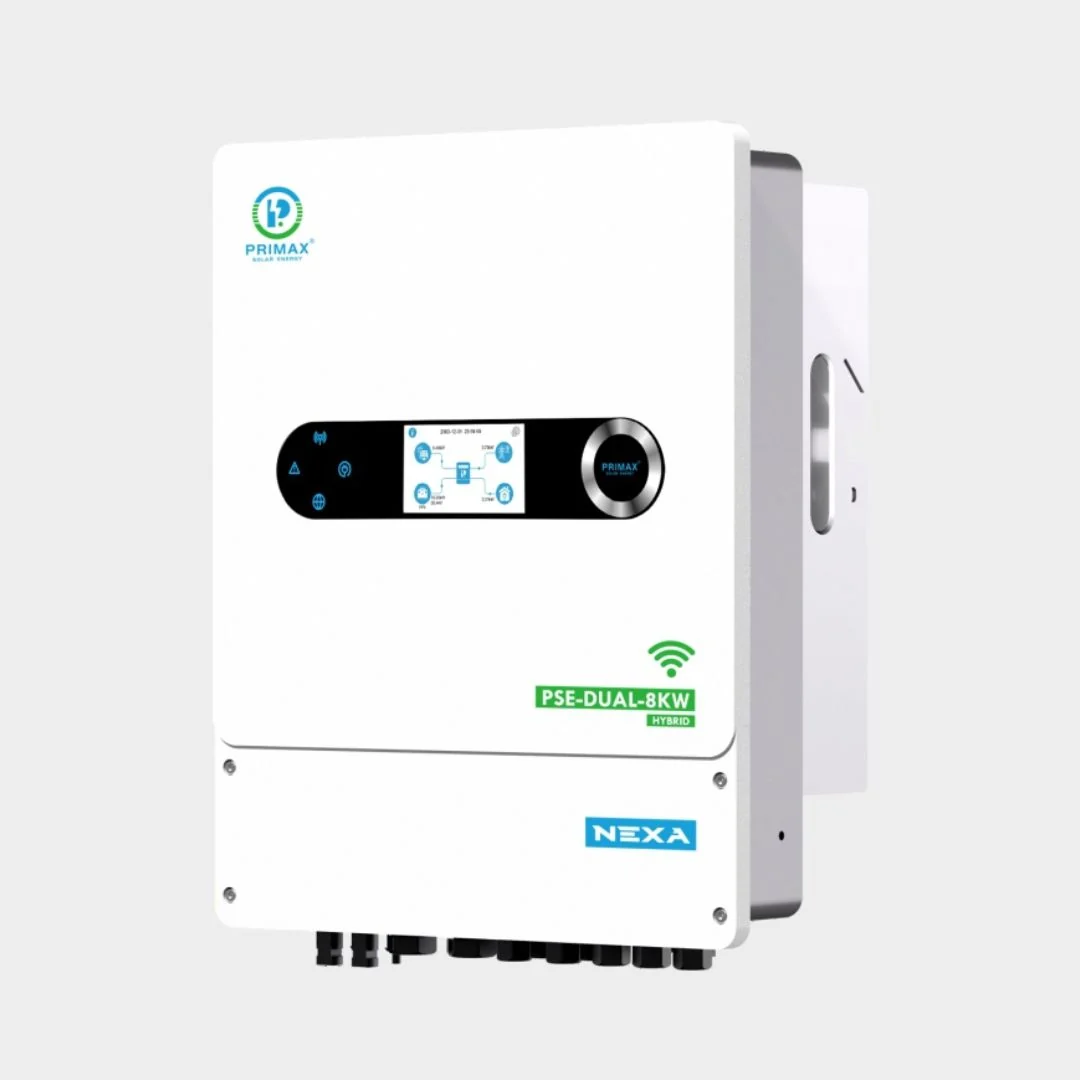

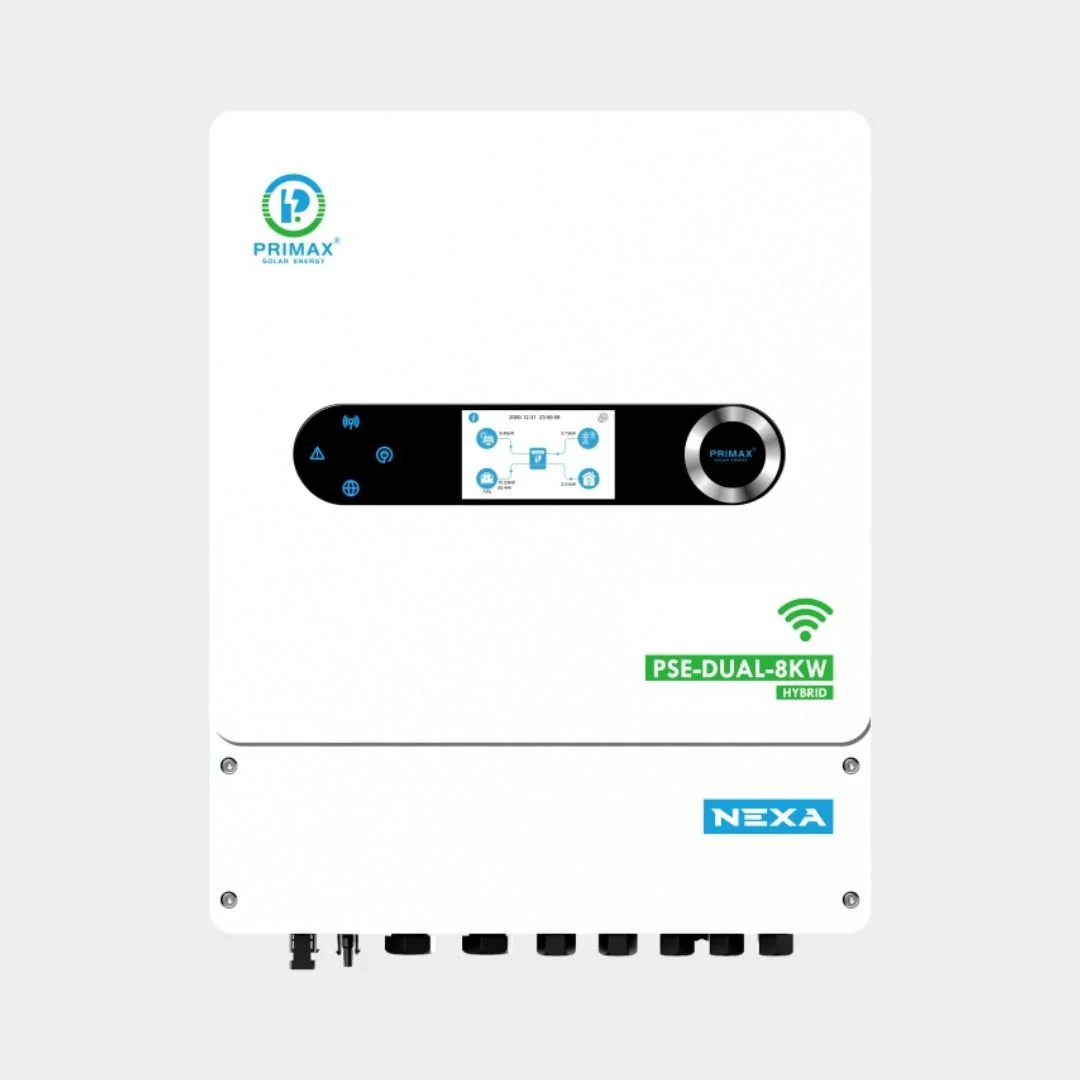

PRIMAX NEXA PSE-DUAL-8KW Hybrid Solar Inverter

Solar Power and Battery Storage for Your Property

The PRIMAX NEXA PSE-DUAL-8KW hybrid solar inverter is an option for buyers planning an 8kW solar installation with battery storage. Its single-phase configuration and two backup outputs provide flexibility for professionally designed home, shop and office systems.

For customers comparing the PRIMAX NEXA 8kW price in Pakistan, HN Electric’s supplied selling price is Rs. 300,000. Batteries, solar panels, protection equipment and installation should be considered separately when budgeting for the complete system.

Dual MPPT for Flexible Solar Array Design

Two Maximum Power Point Trackers allow an installer to configure separate PV groups within the inverter’s electrical limits. This can help accommodate suitable array layouts where different panel groups require independent tracking.

PRIMAX’s datasheet specifies a maximum DC input power of 12,000W and a maximum DC input voltage of 500V. These are separate limits: staying within the panel wattage allowance does not automatically make a string safe. Your installer must also check cold-weather open-circuit voltage, operating current and short-circuit current.

Battery Integration and Backup Planning

The official documentation lists support for lithium or lead-acid batteries. The selected battery must match the inverter’s voltage requirements, supported communication arrangements and approved operating settings.

Two backup outputs allow separate load connections according to the manufacturer’s wiring instructions. They do not mean the inverter supplies a combined 16kW. A qualified installer should establish the total permitted load and decide which circuits need priority during an outage.

Backup duration depends on usable battery capacity, appliance demand and operating conditions. Choose battery storage around the hours of backup you need rather than relying on the inverter’s power rating alone.

Suitable Applications

Consider the PRIMAX NEXA PSE-DUAL-8KW for a suitable single-phase property after checking actual electricity demand. Lighting, refrigeration, computers and other appliances should be assessed together with larger loads such as pumps and air conditioners.

Motor-driven equipment can draw additional current when starting. A professional load calculation helps determine which appliances can operate together and whether an 8kW inverter is appropriate for your requirements.

Protection and Installation

The manufacturer’s documentation lists protection functions including reverse-polarity protection, residual-current detection, output overcurrent protection and short-circuit protection. These features support the system’s protective design but do not replace correctly selected external breakers, isolation devices, earthing and surge protection.

Have the inverter installed and commissioned by a qualified solar electrician. Follow the applicable manual for mounting clearances, ventilation, cable sizing and battery settings.

Order from HN Electric

Before purchasing, confirm the exact nameplate model, included accessories, current stock and delivery charges. Request written warranty terms and battery compatibility confirmation for your proposed installation.

Do not exceed electrical ratings, modify wiring without professional guidance or attempt maintenance while energy sources remain connected. Correct equipment selection and installation are essential for dependable operation.
