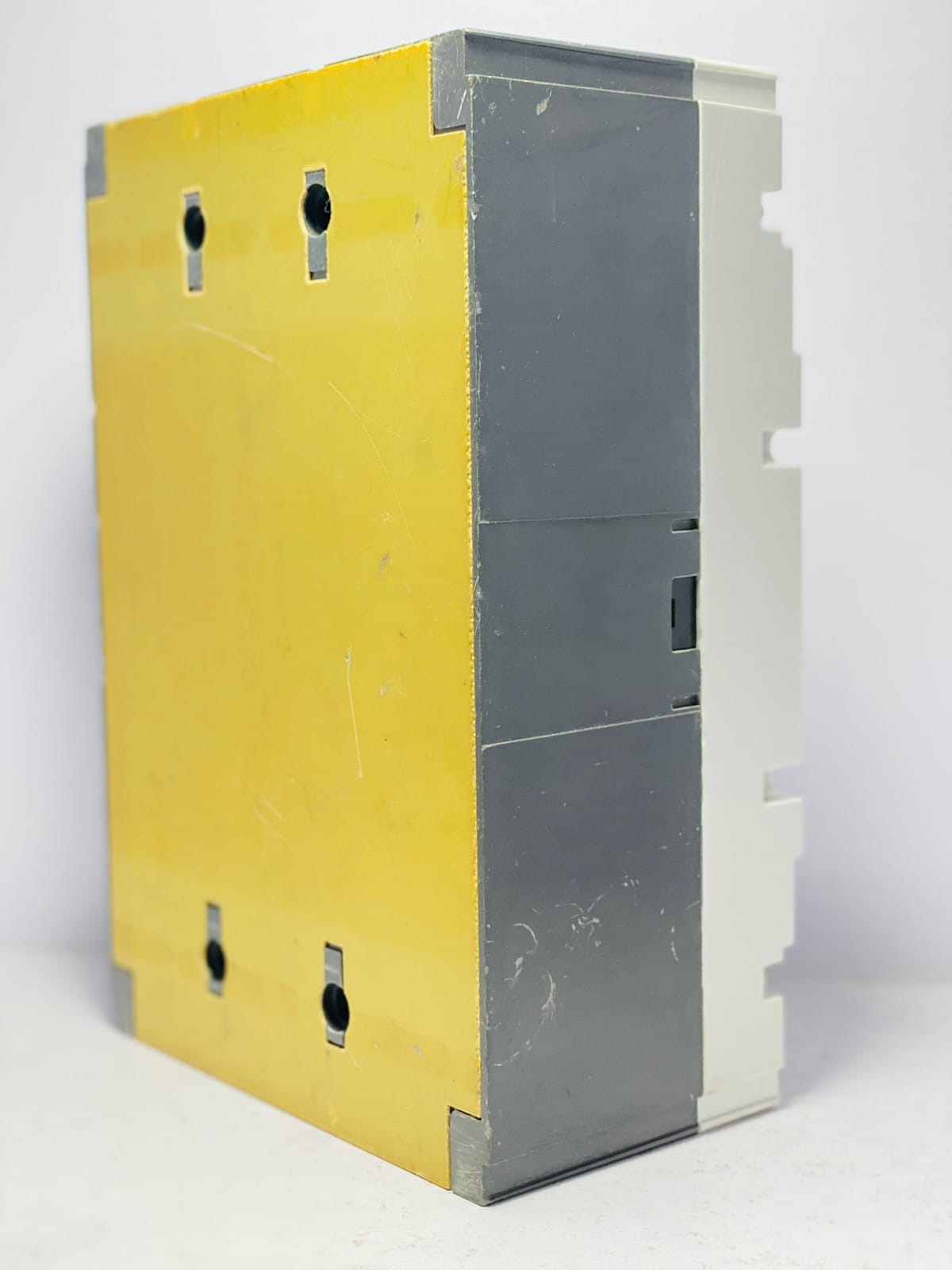

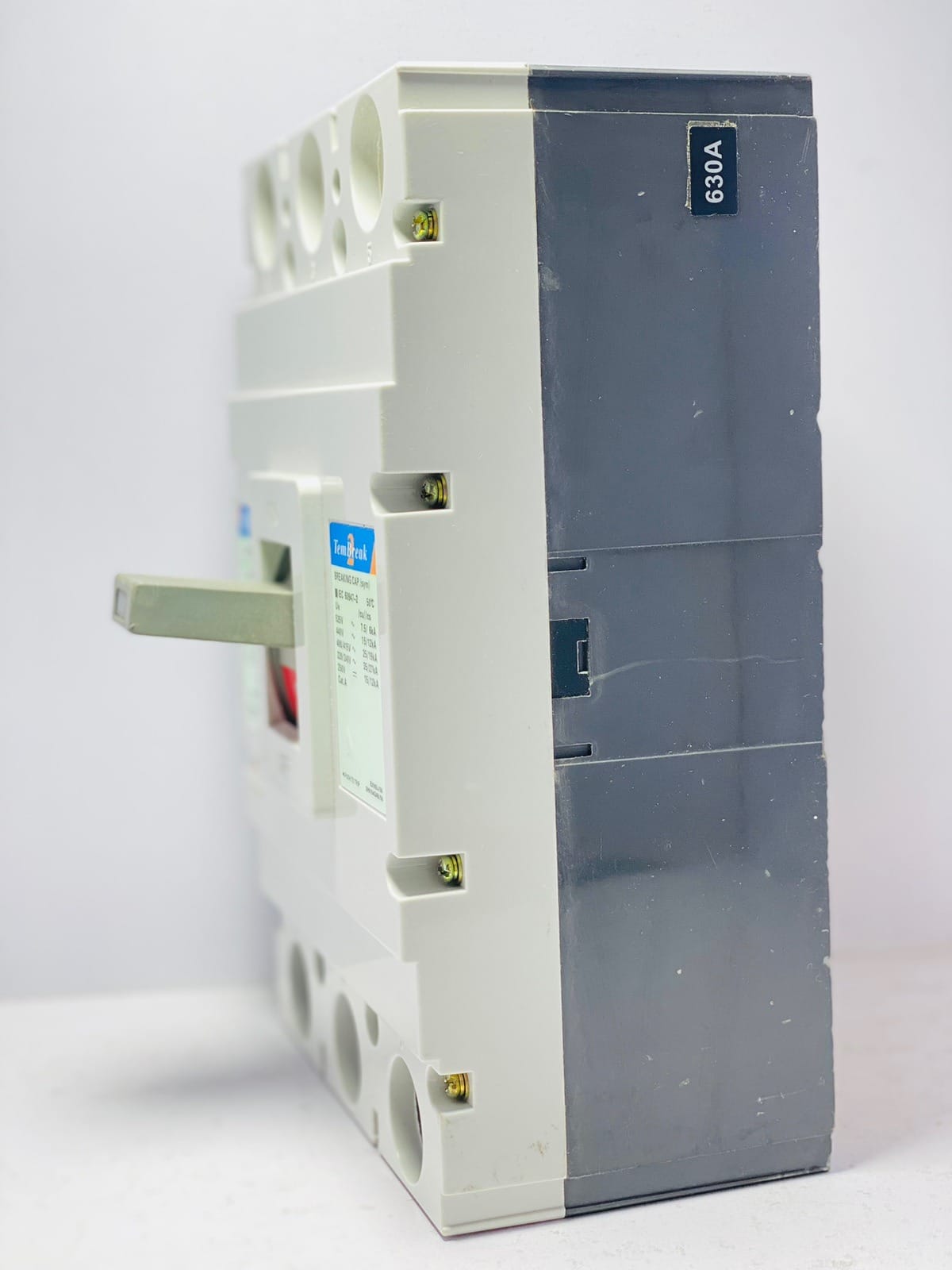

TERASAKI S630-CF 630A 3P MCCB

The TERASAKI S630-CF 630A 3P MCCB is a high-capacity moulded case circuit breaker designed for demanding low-voltage electrical distribution and industrial applications. With a 630A rating and three-pole configuration, it is suitable for applications where reliable protection and switching of three-phase electrical circuits are required.

The S630-CF belongs to the Terasaki TemBreak range. Terasaki’s published product information identifies the S630-CF as a 630-frame MCCB and specifies a 36/36kA breaking-capacity rating for the 630A 3-pole configuration. The manufacturer’s documentation also shows S630-CF as part of its standard MCCB range.

A 630A 3P MCCB is typically considered for higher-current distribution applications such as industrial electrical panels, large commercial installations, generators, power distribution systems and other three-phase installations where a conventional lower-rated MCCB would not be suitable. The exact application, cable size, prospective short-circuit current and protection coordination should always be checked by a qualified electrical professional before installation.

One important point when purchasing a Terasaki MCCB is to verify the complete model reference rather than selecting a breaker only by its ampere rating. Terasaki offers different 630A-frame versions with different breaking capacities and configurations. For example, Terasaki lists the S630-CF and S630-NF separately, with the S630-CF specified at 36/36kA and the S630-NF at 50/50kA.

The TERASAKI S630-CF 630A 3P MCCB is therefore particularly relevant for customers who need a 630A three-phase breaker with a 36kA breaking-capacity specification. Pakistani project documentation also shows S630CF being specified for 630A TP MCCB applications, including incoming and outgoing distribution circuits.

HN Electric supplies electrical and power-distribution products in Lahore and Pakistan. Customers should confirm the exact Terasaki model, breaking capacity, trip characteristics, mounting arrangement and any required accessories before placing an order.

For project quantities, industrial panels or replacement requirements, provide the existing breaker model/reference and electrical specifications so the correct Terasaki configuration can be confirmed before purchase.

FAQs

1. What is the rating of the Terasaki S630-CF MCCB?

The S630-CF 3-pole configuration is available with a 630A rated current.

2. What is the breaking capacity of Terasaki S630-CF 630A MCCB?

The S630-CF 630A 3P configuration is specified at 36kA/36kA breaking capacity in Terasaki’s product information.

3. Is the Terasaki S630-CF a 3-pole MCCB?

Yes. Terasaki lists the S630-CF in a 3-pole 630A configuration.

4. What is the difference between S630-CF and S630-NF?

They are different Terasaki 630-frame MCCB configurations. Terasaki lists the S630-CF at 36/36kA and the S630-NF at 50/50kA, so the exact model should be selected according to the required fault-current protection.
